Baldor L1510T AC Motors
General Purpose Motor - 7-1/2 hp, 1800 rpm, 1 ph, 230 V, 215T Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, 1750 rpm Base, Foot Mount, Continuous Duty
ITEM #6907aea0ad9cc32ae1310be6 MFR #L1510T SKU #YLS8KMNPX08PR6L
Hızlı Özellikler
Motor Phase: 1 ph
Motor Horsepower: 7-1/2 hp
Synchronous Rpm: 1800 rpm
Motor Supply Voltage: 230 V
Frame Size: 215T
Enclosure Type: ODP (Open Drip-Proof)
Genel Bakış
General Purpose Motor - 7-1/2 hp, 1800 rpm, 1 ph, 230 V, 215T Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, 1750 rpm Base, Foot Mount, Continuous Duty
Özellikler ve Avantajlar
- Copper windings
- Dynamically balanced rotors
- Ball bearings
- Heavy-gauge steel frames
- Applications: Compressors, pumps, conveyors, machine tools, air handling, and others
Teknik Özellikler
Motor Phase 1 ph
Motor Horsepower 7-1/2 hp
Synchronous Rpm 1800 rpm
Motor Supply Voltage 230 V
Frame Size 215T
Enclosure Type ODP (Open Drip-Proof)
Frequency Rating 60 Hz
Base RPM 1750 rpm
Duty Condition Type Continuous Duty
Mounting Type Foot
Full Load Current 31.00 A
Full Load Efficiency 85.50 %
Amps @ Voltage 33.0 A @ 208 V; 31.0 A @ 230 V
Volts @ Frequency 230 V @ 60 Hz
Description Keyword 7-1/2 hp
Shaft Diameter 1.3750 in

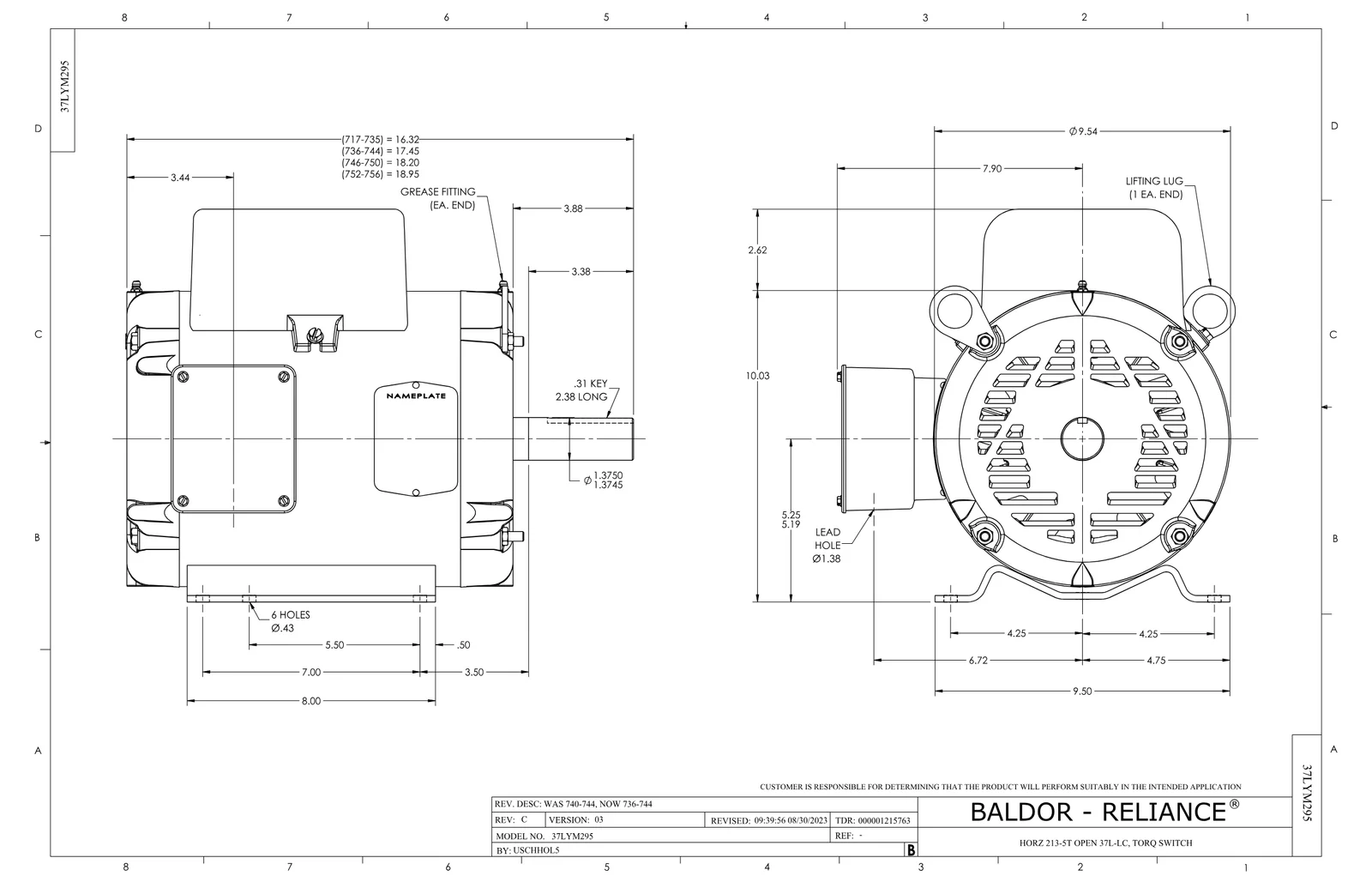

Overall Length C Dimension 17.45 in
Warranty 2 Year Warranty
Type Of Bearing Ball
NEMA Design Class L
Service Factor 1.15
Frame Material Steel
Insulation Class B
IP Rating 22/23
Standards Met UR, CSA
Weight 132 lbs
Applications Compressors, pumps, conveyors, machine tools, air handling, and others.
Additional Details Copper windings, dynamically balanced rotors, ball bearings, heavy gauge steel frames, and other industrial quality features.
Harmonization Code 8501.40.6040
UPC_NO 781568101704
Manufacturer Catalog http://www.baldor.com/mvc/DownloadCenter/Files/CA501
Manufacturer Product Page http://www.baldor.com/catalog/L1510T
Motor Category General Purpose Motor

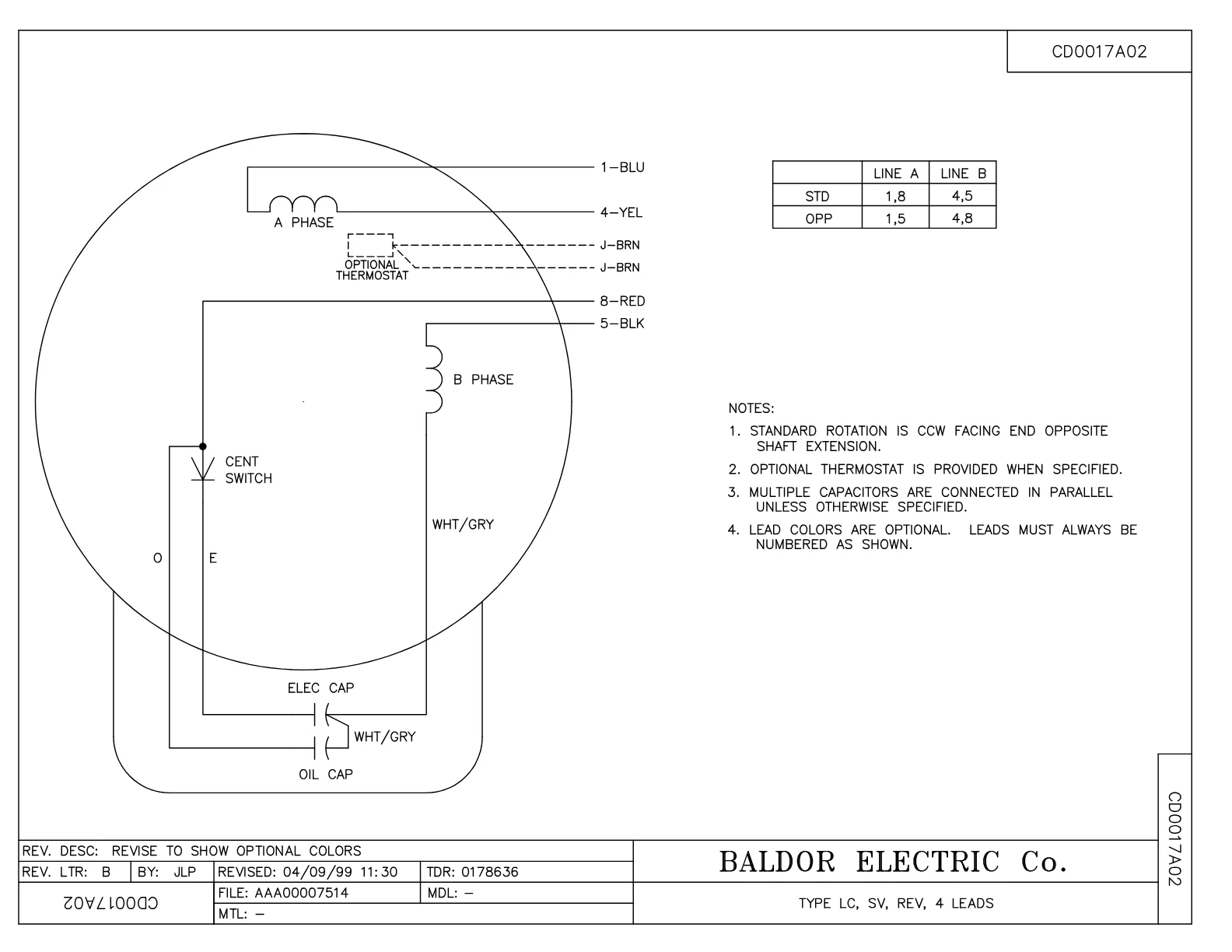

Wiring Diagram https://www.baldorvip.com/servlet/productInfoPacket?nameplate=X&layoutdiagram=X&electrical=X&connectiondiagram=X&language=E&matnr=L1510T&vkorg=BEC
Instructional Video https://youtu.be/j-mFjRPjiFU?list=PLUJtYxZcxl_oZa19yqrOGvU3YxQu5APRV
Product Type General Purpose Motors
