Baldor KL3405 AC Motors
General Purpose Motor - 1/3 hp, 3600 rpm, 1 ph, 115/208-230 V, 56C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3450 rpm Base, C-Face / Footless Mount, Continuous Duty
ITEM #6907b5e0ad9cc32ae1316bbb MFR #KL3405 SKU #YLSJAC7OM0BZWFM
Hızlı Özellikler
Motor Phase: 1 ph
Motor Horsepower: 1/3 hp
Synchronous Rpm: 3600 rpm
Motor Supply Voltage: 115/208-230 V
Frame Size: 56C
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Genel Bakış
General Purpose Motor - 1/3 hp, 3600 rpm, 1 ph, 115/208-230 V, 56C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3450 rpm Base, C-Face / Footless Mount, Continuous Duty
Özellikler ve Avantajlar
- Pressure cast aluminum end plates with ribbed design for rigidity
- Ball bearings with a locked drive end bearing, heavy-gauge steel frame, and gasketed conduit box and capacitor cover
- Applications: Pumps, fans, conveyors, machine tools, gear reducers and other applications requiring a NEMA C-face motor
Teknik Özellikler
Motor Phase 1 ph
Motor Horsepower 1/3 hp
Synchronous Rpm 3600 rpm
Motor Supply Voltage 115/208-230 V
Frame Size 56C
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
Frequency Rating 60 Hz
Base RPM 3450 rpm
Duty Condition Type Continuous Duty
Mounting Type C-Face / Footless
Full Load Current 3.00 A
Full Load Efficiency 55.00 %
Amps @ Voltage 3.2 A @ 208 V; 3.7 A @ 208 V; 6.0 A @ 115 V; 3.0 A @ 230 V
Volts @ Frequency 115 V @ 60 Hz; 208 V @ 60 Hz; 230 V @ 60 Hz
Description Keyword 1/3 hp
Shaft Diameter 0.6250 in
Overall Length C Dimension 11.35 in
Warranty 2 Year Warranty
Type Of Bearing Ball
NEMA Design Class N
Service Factor 1.35
Frame Material Steel
Insulation Class B
IP Rating 44
Standards Met UR, CSA
Weight 21 lbs
Applications Pumps, fans, conveyors, machine tools, gear reducers and other applications requiring a NEMA C-face motor.
Additional Details Pressure cast aluminum end plates with ribbed design for rigidity. Ball bearings with a locked drive end bearing, heavy-gauge steel frame, and gasketed conduit box and capacitor cover.
Harmonization Code 8501.40.4040
UPC_NO 781568109007
Manufacturer Catalog http://www.baldor.com/mvc/DownloadCenter/Files/CA501
Manufacturer Product Page http://www.baldor.com/catalog/KL3405
Motor Category General Purpose Motor

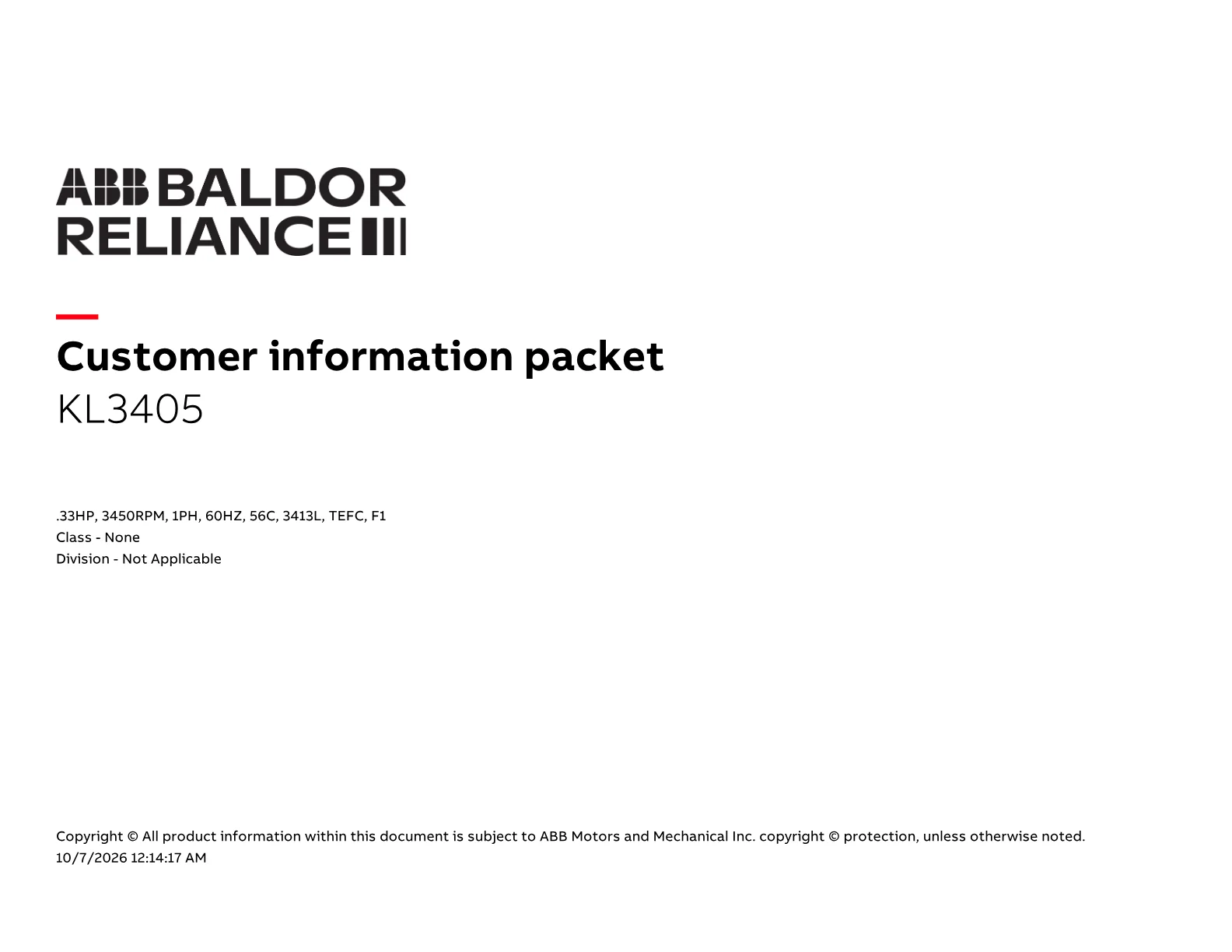

Wiring Diagram https://www.baldorvip.com/servlet/productInfoPacket?nameplate=X&layoutdiagram=X&electrical=X&connectiondiagram=X&language=E&matnr=KL3405&vkorg=BEC
Instructional Video https://youtu.be/j-mFjRPjiFU?list=PLUJtYxZcxl_oZa19yqrOGvU3YxQu5APRV
Product Type General Purpose Motors
