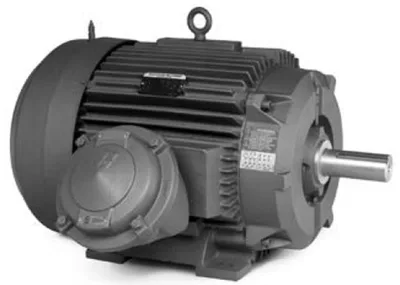

Baldor IDXM7547T-C
Explosion Proof / Hazardous Location - Inverter Duty Motor - 7-1/2 hp, 1800 rpm, 3 ph, 230/460 V, L213T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Foot Mount, Continuous Duty
Motor Phase3 ph
Motor Horsepower7-1/2 hp
Synchronous Rpm1800 rpm
Motor Supply Voltage230/460 V
Frame SizeL213T
Enclosure TypeTEFC (Totally Enclosed Fan Cooled)
Ürün Hakkında
Explosion Proof / Hazardous Location - Inverter Duty Motor - 7-1/2 hp, 1800 rpm, 3 ph, 230/460 V, L213T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Foot Mount, Continuous Duty
Baldor IDXM7547T-C
- Orijinal ve sertifikalı Baldor ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Motor CategoryInverter Duty Motor - Explosion Proof / Hazardous Location
Motor Phase3 ph
Motor Horsepower7-1/2 hp
Synchronous Rpm1800 rpm
Motor Supply Voltage230/460 V
Frame SizeL213T
Enclosure TypeTEFC (Totally Enclosed Fan Cooled)
Frequency Rating60 Hz
Duty Condition TypeContinuous Duty
Mounting TypeFoot
Full Load Efficiency91.70 %
Volts @ Frequency230 V @ 60 Hz; 460 V @ 60 Hz
Shaft Diameter1.3750 in
Service Factor1.00
Frame MaterialCast Iron
Insulation ClassF
Harmonization Code8501.52.4000
Weight336 lbs
ApplicationsDesigned for Variable Speed, Foot or Flanged mounted applications where hazardous fumes are present requiring Div 1 UL listed and/or CSA approved enclosures.
Additional DetailsUL and CSA approved for hazardous locations. Division 1, Class I, Group C & D, Class II, Groups F & G, Temperature Code T3C (160°C) 4:1 CT, 10:1 VT. The premium efficient electrical design features Class F insulation system that meets the requirements of NEMA MG1 Part 31.4.4.2. Motor has a 1.0 service factor on inverter power and a 1.15 service factor on sine wave power. Motor winding design includes thermostats. These Division 1 motors are built with rugged all cast iron construction. The cast iron conduit box is threaded on to the motor frame and has a threaded lead input opening.
Product TypeInverter Vector Duty Motors
