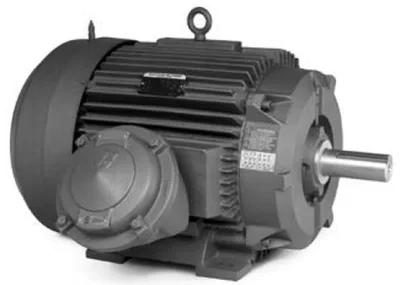

Baldor IDXCM7568T-C
Explosion Proof / Hazardous Location - Inverter Duty Motor - 75 hp, 1800 rpm, 3 ph, 230/460 V, 365TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, C-Face / Foot Mount, Continuous Duty
Motor Phase3 ph
Motor Horsepower75 hp
Synchronous Rpm1800 rpm
Motor Supply Voltage230/460 V
Frame Size365TC
Enclosure TypeTEFC (Totally Enclosed Fan Cooled)
Ürün Hakkında
Explosion Proof / Hazardous Location - Inverter Duty Motor - 75 hp, 1800 rpm, 3 ph, 230/460 V, 365TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, C-Face / Foot Mount, Continuous Duty
Baldor IDXCM7568T-C
- Orijinal ve sertifikalı Baldor ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Motor CategoryInverter Duty Motor - Explosion Proof / Hazardous Location
Motor Phase3 ph
Motor Horsepower75 hp
Synchronous Rpm1800 rpm
Motor Supply Voltage230/460 V
Frame Size365TC
Enclosure TypeTEFC (Totally Enclosed Fan Cooled)
Frequency Rating60 Hz
Duty Condition TypeContinuous Duty
Mounting TypeC-Face / Foot
Full Load Efficiency95.40 %
Volts @ Frequency230 V @ 60 Hz; 460 V @ 60 Hz
Shaft Diameter2.3750 in
Overall Length C Dimension33.44 in
Service Factor1.00
Frame MaterialCast Iron
Insulation ClassB
Standards MetCCSA US, CSA, CSA EEV, UL
Harmonization Code8501.52.8040
Weight965 lbs
ApplicationsDesigned for Variable Speed, Foot or Flanged mounted applications where hazardous fumes are present requiring Div 1 UL listed and/or CSA approved enclosures.
Additional DetailsUL and CSA approved for hazardous locations. Division 1, Class I, Group C & D, Class II, Groups F & G, Temperature Code T3C (160°C) 4:1 CT, 10:1 VT. The premium efficient electrical design features Class F insulation system that meets the requirements of NEMA MG1 Part 31.4.4.2. Motor has a 1.0 service factor on inverter power and a 1.15 service factor on sine wave power. Motor winding design includes thermostats. These Division 1 motors are built with rugged all cast iron construction. The cast iron conduit box is threaded on to the motor frame and has a threaded lead input opening.
Product TypeInverter Vector Duty Motors
