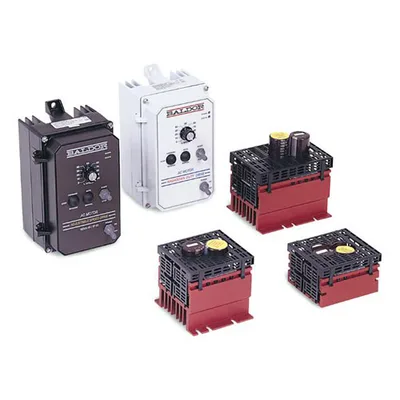

Baldor ID5601-EO AC Variable Frequency and Servo Drives
Variable Frequency AC Drive - Input Phase 1, Supply Voltage 115/230 V ac, 1 hp Normal Duty, Output Current 4 A Normal Duty, NEMA 1 Rating, 60 Hz, Frequency Control
ITEM #6907be5dad9cc32ae131cbc8 MFR #ID5601-EO SKU #YLS7XOUHUFGX79G
Hızlı Özellikler
Number Of Input Phases: 1
Drive Supply Voltage: 115/230 V ac
Horsepower Rating Normal Duty: 1 hp
Output Current Normal Duty: 4 A
Operation Mode: Frequency Control
Product Type: AC Variable Frequency & Servo Drives
Genel Bakış
Variable Frequency AC Drive - Input Phase 1, Supply Voltage 115/230 V ac, 1 hp Normal Duty, Output Current 4 A Normal Duty, NEMA 1 Rating, 60 Hz, Frequency Control
Teknik Özellikler
Number Of Input Phases 1
Drive Supply Voltage 115/230 V ac
Horsepower Rating Normal Duty 1 hp
Output Current Normal Duty 4 A
Operation Mode Frequency Control
Product Type AC Variable Frequency & Servo Drives
Enclosure Rating NEMA 1
Input Frequency Rating 60 Hz
Overall Depth 2.75 in
Overall Dim Height Width Depth 7.13 x 6.25 x 2-3/4 in
Overall Height 7.13 in
Overall Width 6.25 in
Operating Temperature Range -10 to +45 °F
Mounting Type Chassis Mount
Weight 6.00 lbs
Standards Met CE, CSA, UL
