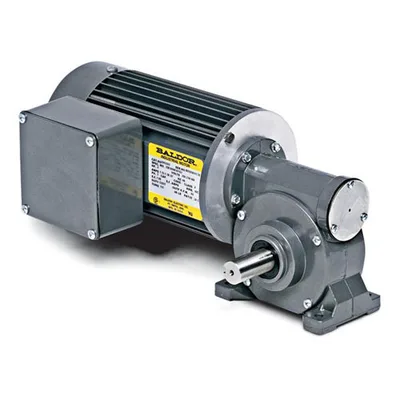

Baldor GM3301 AC Gear Motors
AC Right Angle Gear Motor - 10 :1 Ratio, 1/2 hp, 208-230/460 V, 3 ph, TEFC (Totally Enclosed Fan Cooled), Foot Mount, 2.10–2.38 / 1.20 A - Full Load Current
ITEM #6907af47ad9cc32ae131130d MFR #GM3301 SKU #YLSLARUK1RVXSAY
Hızlı Özellikler
Shaft Type: Right Angle
Input Horsepower: 1/2 hp
Motor Phase: 3 ph
Motor Supply Voltage: 208-230/460 V
Gear Ratio: 10 :1
Output RPM: 175.0 rpm
Genel Bakış
AC Right Angle Gear Motor - 10 :1 Ratio, 1/2 hp, 208-230/460 V, 3 ph, TEFC (Totally Enclosed Fan Cooled), Foot Mount, 2.10–2.38 / 1.20 A - Full Load Current
Özellikler ve Avantajlar
- Ball bearing on output for smooth torque transmission
- High strength bronze gearing with hardened and ground worm for quiet operation and increased radial load capacity
- High performance low friction, bidirectional motor seals
- Permanently lubricated with synthetic oil
- Internal oil expansion bladder allows for multi-position mounting without the need to relocate breather vents
Teknik Özellikler
Shaft Type Right Angle
Input Horsepower 1/2 hp
Motor Phase 3 ph
Motor Supply Voltage 208-230/460 V
Gear Ratio 10 :1
Output RPM 175.0 rpm
Enclosure Abbreviation TEFC
Duty Condition Type Continuous Duty
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
Full Load Current 2.10–2.38 / 1.20 A
Full Load Torque 135 in/lb
Insulation Class B
Frequency Rating 60 Hz
Standards Met CSA, RoHS, UR
Mounting Type Foot
Weight 26.00 lbs
Harmonization Code 8501.51.4020
UPC_NO 781568388754
Manufacturer Catalog http://www.baldor.com/mvc/DownloadCenter/Files/CA501
Manufacturer Product Page http://www.baldor.com/catalog/GM3301
2D Drawing http://www.baldor.com/api/products/GM3301/drawings/33E282-0673K4
Wiring Diagram http://www.baldor.com/api/products/GM3301/drawings/CD0005A05
Installation Instructions https://www.baldorvip.com/servlet/productInfoPacket/GM3301.pdf
