Baldor FDL3611TM AC Motors
Farm Duty - General Purpose Motor - 2 hp, 1800 rpm, 1 ph, 115/230 V, 182T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, Foot Mount, Continuous Duty
ITEM #6907af5cad9cc32ae131181d MFR #FDL3611TM SKU #YLSNMQZXDXPLTD7
Hızlı Özellikler
Motor Category: General Purpose Motor
Motor Phase: 1 ph
Motor Horsepower: 2 hp
Synchronous Rpm: 1800 rpm
Motor Supply Voltage: 115/230 V
Frame Size: 182T
Genel Bakış
Farm Duty - General Purpose Motor - 2 hp, 1800 rpm, 1 ph, 115/230 V, 182T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, Foot Mount, Continuous Duty
Teknik Özellikler
Motor Category General Purpose Motor
Motor Phase 1 ph
Motor Horsepower 2 hp
Synchronous Rpm 1800 rpm
Motor Supply Voltage 115/230 V
Frame Size 182T
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
Frequency Rating 60 Hz
Duty Condition Type Continuous Duty
Base RPM 1725 rpm
Full Load Current 14.00 A
Full Load Efficiency 75.00 %
Amps @ Voltage 28.0 A @ 115 V; 14.0 A @ 230 V
Description Keyword 2 hp
Volts @ Frequency 115 V @ 60 Hz; 230 V @ 60 Hz
Shaft Diameter 1.1250 in

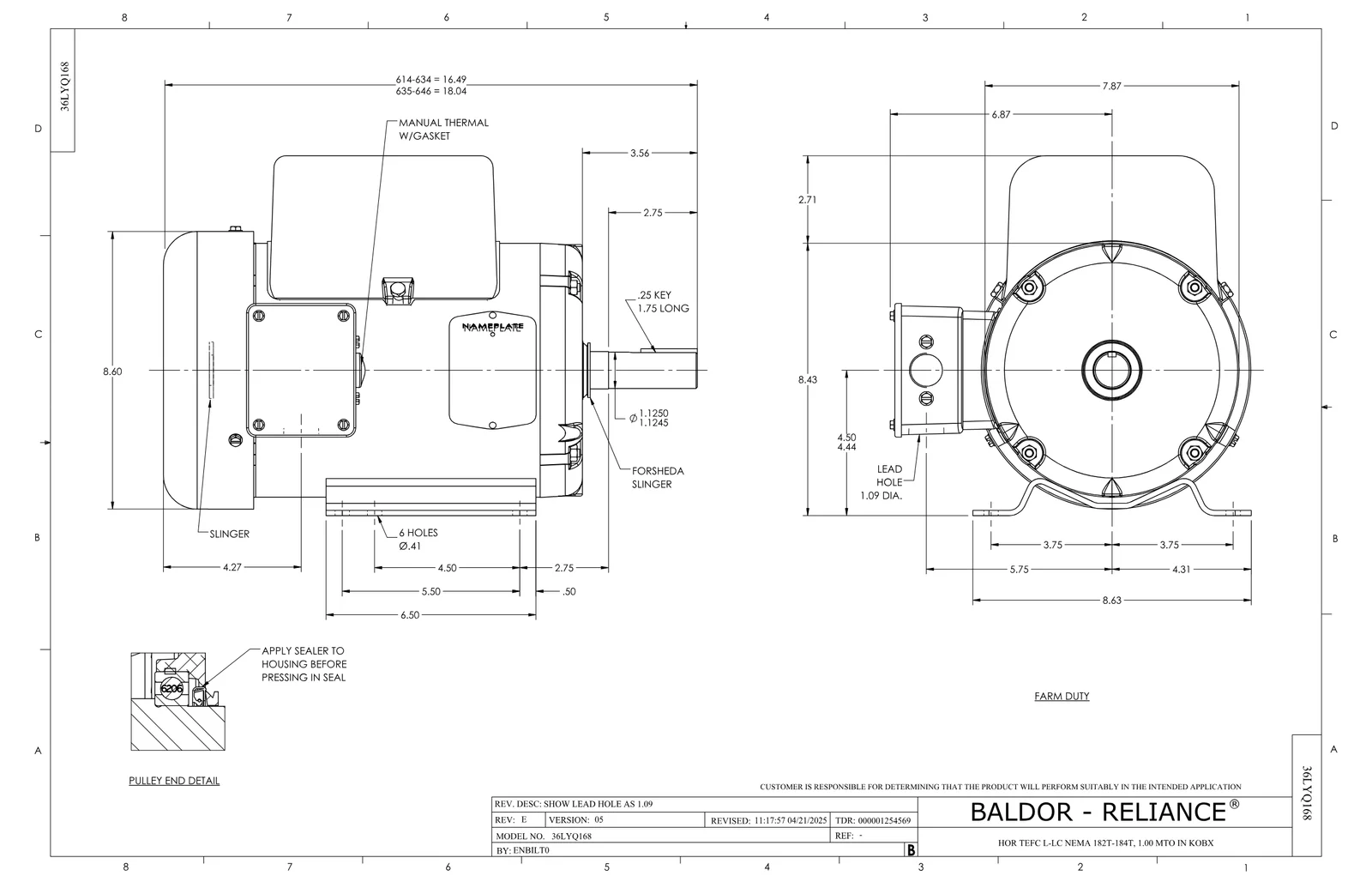

Overall Length C Dimension 16.55 in
Warranty 2 Year Warranty
Type Of Bearing Ball
NEMA Design Class L
Service Factor 1.00
Frame Material Steel
Insulation Class B
Standards Met UR, CSA
Harmonization Code 8501.40.6040
Weight 78 lbs
Applications Wide variety of agri-duty and industrial applications.
Manufacturer Catalog http://www.baldor.com/mvc/DownloadCenter/Files/CA501
Manufacturer Product Page http://www.baldor.com/catalog/FDL3611TM
UPC_NO 781568140017
Additional Details Sealed ball bearings, lubricated with high temperature moistureresistant grease. Drive end seal and v-ring slinger to prevent moisture and contaminant ingress. Condensation drains, gasketed cast conduit boxes. Epoxy paint protects motor from harsh environments.
Wiring Diagram https://www.baldorvip.com/servlet/productInfoPacket?nameplate=X&layoutdiagram=X&electrical=X&connectiondiagram=X&language=E&matnr=FDL3611TM&vkorg=BEC
Instructional Video https://youtu.be/j-mFjRPjiFU?list=PLUJtYxZcxl_oZa19yqrOGvU3YxQu5APRV
Mounting Type Foot
Product Type Farm Duty Motors
