Baldor ENCP3581T-4 AC Motors
Severe Duty Motor - 1 hp, 1800 rpm, 3 ph, 460 V, 143T Frame, TENV (Totally Enclosed Non-Ventilated) Enclosure, 60 Hz, 1775 rpm Base, Foot Mount, Continuous Duty
ITEM #6907aabead9cc32ae130d868 MFR #ENCP3581T-4 SKU #YLS2PDDSSXDMMKZ
Hızlı Özellikler
Motor Category: General Severe Duty Motor
Motor Phase: 3 ph
Motor Horsepower: 1 hp
Description Keyword: 1 hp
Synchronous Rpm: 1800 rpm
Motor Supply Voltage: 460 V
Genel Bakış
Severe Duty Motor - 1 hp, 1800 rpm, 3 ph, 460 V, 143T Frame, TENV (Totally Enclosed Non-Ventilated) Enclosure, 60 Hz, 1775 rpm Base, Foot Mount, Continuous Duty
Teknik Özellikler
Motor Category General Severe Duty Motor
Motor Phase 3 ph
Motor Horsepower 1 hp
Description Keyword 1 hp
Synchronous Rpm 1800 rpm
Motor Supply Voltage 460 V
Frame Size 143T
Enclosure Type TENV (Totally Enclosed Non-Ventilated)
Frequency Rating 60 Hz
Duty Condition Type Continuous Duty
Base RPM 1775 rpm
Full Load Current 1.50 A
Full Load Efficiency 87.50 %
Amps @ Voltage 1.5 A @ 460 V
Volts @ Frequency 460 V @ 60 Hz
Shaft Diameter 0.8750 in

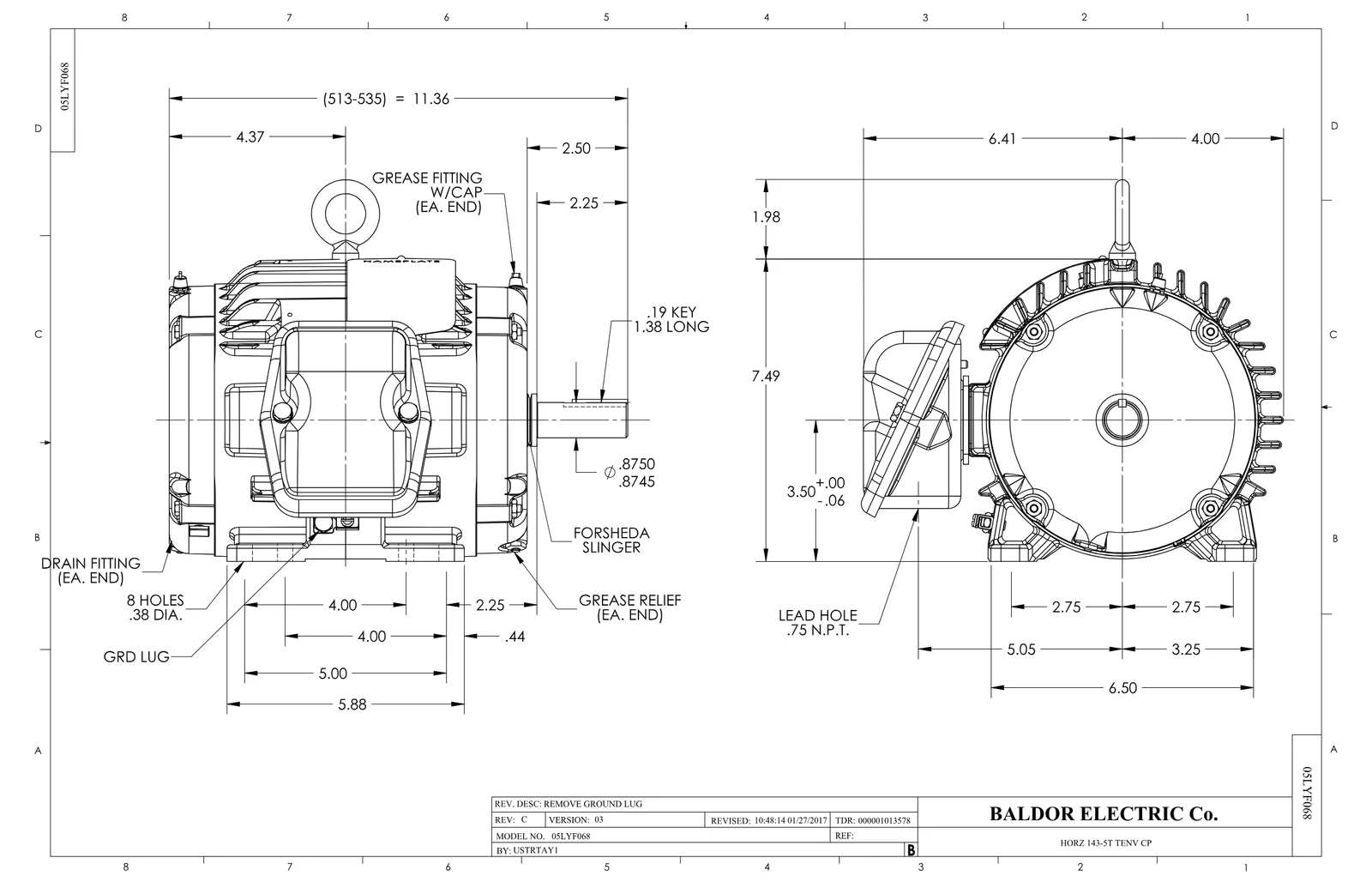

Overall Length C Dimension 11.36 in
Mounting Type Foot
Service Factor 1.15
Frame Material Cast Iron
Insulation Class F
IP Rating 55
Standards Met CSA EEV, UR, CCSA US, CSA
Harmonization Code 8501.52.4000
Weight 60 lbs
Applications Petro-chemical plants, mines, quarries, foundries, pulp and paper plants, waste management facilities, chemical plants, and other processing industry applications requiring protection against corrosion caused by severe environmental operating conditions.
Additional Details Totally enclosed cast iron construction, Premium insulation system, Sealed frame fits, Gasketed conduit box, V-Ring shaft slinger, Stainless Steel nameplates, Corrosion resistant epoxy finish and Corrosion resistant hardware. Super-E® severe duty motors have NEMA Premium® efficiency, Class F insulation, 1.15 service factor and 3 year warranty. Positive lubrication system (PLS) on 250 frames and larger. Motors are marked for Division 2/Zone 2, Class I locations. Inverter Ready design with speed range and Inverter T. Code nameplate information, see chart on page 51 for specific motor information.
Manufacturer Catalog http://www.baldor.com/mvc/DownloadCenter/Files/CA501
Manufacturer Product Page http://www.baldor.com/catalog/ENCP3581T-4
UPC_NO 781568464618
Wiring Diagram https://www.baldorvip.com/servlet/productInfoPacket?nameplate=X&layoutdiagram=X&electrical=X&connectiondiagram=X&language=E&matnr=ENCP3581T-4&vkorg=BEC
Instructional Video https://youtu.be/j-mFjRPjiFU?list=PLUJtYxZcxl_oZa19yqrOGvU3YxQu5APRV
Product Type Severe Duty Motors
