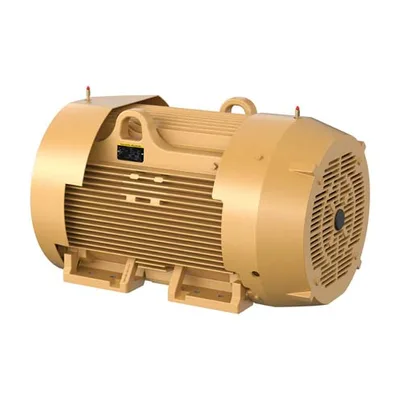

Baldor EM4407TS-4 AC Motors
General Purpose Motor - 200 hp, 1800 rpm, 3 ph, 460 V, 447TS Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1785 rpm Base, Foot Mount, Continuous Duty
ITEM #6907a775ad9cc32ae1309dca MFR #EM4407TS-4 SKU #YLSJ5RGLKF7D71Q
Hızlı Özellikler
Motor Phase: 3 ph
Motor Horsepower: 200 hp
Synchronous Rpm: 1800 rpm
Motor Supply Voltage: 460 V
Frame Size: 447TS
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Genel Bakış
General Purpose Motor - 200 hp, 1800 rpm, 3 ph, 460 V, 447TS Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1785 rpm Base, Foot Mount, Continuous Duty
Teknik Özellikler
Motor Phase 3 ph
Motor Horsepower 200 hp
Synchronous Rpm 1800 rpm
Motor Supply Voltage 460 V
Frame Size 447TS
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
Frequency Rating 60 Hz
Base RPM 1785 rpm
Duty Condition Type Continuous Duty
Mounting Type Foot
Full Load Current 223.00 A
Full Load Efficiency 96.20 %
Amps @ Voltage 223.0 A @ 460 V
Volts @ Frequency 460 V @ 60 Hz
Description Keyword 200 hp
Shaft Diameter 2.3750 in
Overall Length C Dimension 44.48 in
Service Factor 1.15
Frame Material Cast Iron
Insulation Class F
IP Rating 44
Standards Met CSA EEV, CCSA US
Weight 2676 lbs
Applications Pumps, compressors, fans, conveyors, machine tools and other general purpose three phase applications.
Additional Details Suitable for mounting in any position. Ball bearings, heavy-gauge steel and cast-iron frames, gasketed conduit boxes, 1.15 service factor or greater, and low-loss electrical grade lamination steel.
Harmonization Code 8501.53.6000
UPC_NO 781568604533
Manufacturer Catalog http://www.baldor.com/mvc/DownloadCenter/Files/CA501
Manufacturer Product Page http://www.baldor.com/catalog/EM4407TS-4
Motor Category General Purpose Motor
Wiring Diagram https://www.baldorvip.com/servlet/productInfoPacket?nameplate=X&layoutdiagram=X&electrical=X&connectiondiagram=X&language=E&matnr=EM4407TS-4&vkorg=BEC
Instructional Video https://youtu.be/j-mFjRPjiFU?list=PLUJtYxZcxl_oZa19yqrOGvU3YxQu5APRV
Product Type General Purpose Motors
