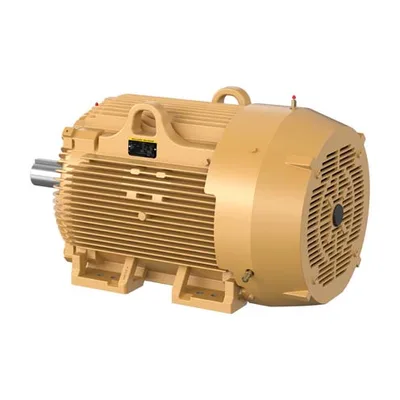

Baldor EM4406T-5 AC Motors
General Purpose Motor - 150 hp, 1800 rpm, 3 ph, 575 V, 445T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1785 rpm Base, Rigid Base Mount, Continuous Duty
ITEM #6907af4cad9cc32ae131139d MFR #EM4406T-5 SKU #YLSMO82G2Q1L1JU
Hızlı Özellikler
Motor Phase: 3 ph
Motor Horsepower: 150 hp
Synchronous Rpm: 1800 rpm
Motor Supply Voltage: 575 V
Frame Size: 445T
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Genel Bakış
General Purpose Motor - 150 hp, 1800 rpm, 3 ph, 575 V, 445T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1785 rpm Base, Rigid Base Mount, Continuous Duty
Teknik Özellikler
Motor Phase 3 ph
Motor Horsepower 150 hp
Synchronous Rpm 1800 rpm
Motor Supply Voltage 575 V
Frame Size 445T
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
Frequency Rating 60 Hz
Base RPM 1785 rpm
Duty Condition Type Continuous Duty
Mounting Type Rigid Base
Full Load Current 135.00 A
Full Load Efficiency 95.80 %
KVA Code F
Motor Poles 4-pole
Starting Method Direct on Line (DOL)
Description Keyword 150 hp
Shaft Diameter 3.3750 in
Shaft Rotation Reversible
Ambient Temperature Range 40 °C
Type Of Bearing Ball Bearing
Service Factor 1.15
Frame Material Iron
Insulation Class F
Standards Met CCSA US, CSA EEV
Weight 1672 lbs
Manufacturer Upc Number 781568501993
UPC_NO 781568501993
Motor Category General Purpose Motor
Product Type General Purpose Motors
