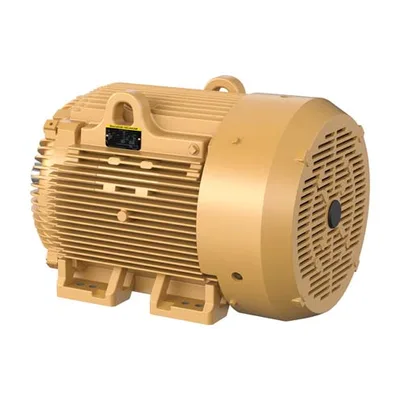

Baldor EM4400TS AC Motors
General Purpose Motor - 100 hp, 1800 rpm, 3 ph, 230/460 V, 405TS Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1785 rpm Base, Foot Mount, Continuous Duty
ITEM #6907a775ad9cc32ae1309ddf MFR #EM4400TS SKU #YLSEMPZRZYJFV4Z
Hızlı Özellikler
Motor Phase: 3 ph
Motor Horsepower: 100 hp
Synchronous Rpm: 1800 rpm
Motor Supply Voltage: 230/460 V
Frame Size: 405TS
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Genel Bakış
General Purpose Motor - 100 hp, 1800 rpm, 3 ph, 230/460 V, 405TS Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1785 rpm Base, Foot Mount, Continuous Duty
Teknik Özellikler
Motor Phase 3 ph
Motor Horsepower 100 hp
Synchronous Rpm 1800 rpm
Motor Supply Voltage 230/460 V
Frame Size 405TS
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
Frequency Rating 60 Hz
Base RPM 1785 rpm
Duty Condition Type Continuous Duty
Mounting Type Foot
Full Load Current 112.00 A
Full Load Efficiency 95.40 %
Amps @ Voltage 112.0 A @ 460 V; 224.0 A @ 230 V
Volts @ Frequency 230 V @ 60 Hz; 460 V @ 60 Hz
Description Keyword 100 hp
Shaft Diameter 2.1250 in
Overall Length C Dimension 35.44 in
Service Factor 1.15
Frame Material Cast Iron
Insulation Class B
IP Rating 44
Standards Met CSA EEV, CCSA US
Weight 1326 lbs
Applications Pumps, compressors, fans, conveyors, machine tools and other general purpose three phase applications.
Additional Details Suitable for mounting in any position. Ball bearings, heavy-gauge steel and cast-iron frames, gasketed conduit boxes, 1.15 service factor or greater, and low-loss electrical grade lamination steel.
Harmonization Code 8501.52.8040
UPC_NO 781568604519
Manufacturer Catalog http://www.baldor.com/mvc/DownloadCenter/Files/CA501
Manufacturer Product Page http://www.baldor.com/catalog/EM4400TS
Motor Category General Purpose Motor
Wiring Diagram https://www.baldorvip.com/servlet/productInfoPacket?nameplate=X&layoutdiagram=X&electrical=X&connectiondiagram=X&language=E&matnr=EM4400TS&vkorg=BEC
Instructional Video https://youtu.be/j-mFjRPjiFU?list=PLUJtYxZcxl_oZa19yqrOGvU3YxQu5APRV
Product Type General Purpose Motors
