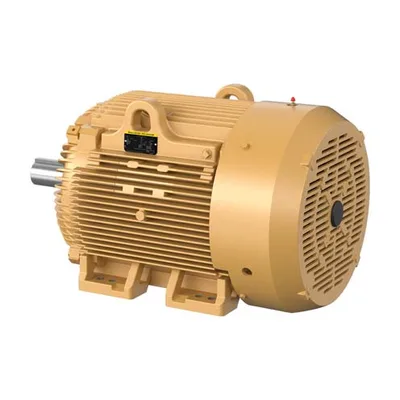

Baldor EM4400T-5 AC Motors
General Purpose Motor - 100 hp, 1800 rpm, 3 ph, 575 V, 405T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1785 rpm Base, Foot Mount, Continuous Duty
ITEM #6907d1976c556f461693e5de MFR #EM4400T-5 SKU #YLSL4S4K7K2YN4Z
Hızlı Özellikler
Motor Phase: 3 ph
Motor Horsepower: 100 hp
Synchronous Rpm: 1800 rpm
Motor Supply Voltage: 575 V
Frame Size: 405T
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Genel Bakış
General Purpose Motor - 100 hp, 1800 rpm, 3 ph, 575 V, 405T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1785 rpm Base, Foot Mount, Continuous Duty
Teknik Özellikler
Motor Phase 3 ph
Motor Horsepower 100 hp
Synchronous Rpm 1800 rpm
Motor Supply Voltage 575 V
Frame Size 405T
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
Frequency Rating 60 Hz
Base RPM 1785 rpm
Duty Condition Type Continuous Duty
Mounting Type Foot
Full Load Current 89.60 A
Full Load Efficiency 95.40 %
Amps @ Voltage 89.6 A @ 575 V
Volts @ Frequency 575 V @ 60 Hz
Description Keyword 100 hp
Shaft Diameter 2.8750 in
Overall Length C Dimension 38.04 in
Service Factor 1.15
Frame Material Cast Iron
Insulation Class F
IP Rating 44
Standards Met CCSA US
Weight 1154 lbs
Applications Pumps, compressors, fans, conveyors, machine tools and other general purpose three phase applications.
Additional Details Copper windings, ball bearings and heavy duty steel or cast iron frames.
Harmonization Code 8501.52.8040
UPC_NO 781568501986
Manufacturer Catalog http://www.baldor.com/mvc/DownloadCenter/Files/CA501
Manufacturer Product Page http://www.baldor.com/catalog/EM4400T-5
Motor Category General Purpose Motor
Wiring Diagram https://www.baldorvip.com/servlet/productInfoPacket?nameplate=X&layoutdiagram=X&electrical=X&connectiondiagram=X&language=E&matnr=EM4400T-5&vkorg=BEC
Instructional Video https://youtu.be/j-mFjRPjiFU?list=PLUJtYxZcxl_oZa19yqrOGvU3YxQu5APRV
Product Type General Purpose Motors
