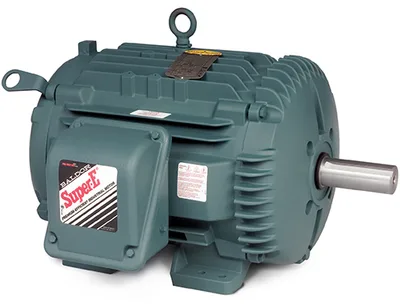

Baldor ECTM4102T AC Motors
Chiller/Cooling Tower Motor - 20 hp, 1200 rpm, 3 ph, 230/460 V, 286T Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, 1180 rpm Base, Foot Mount, Continuous Duty
ITEM #6907b00ead9cc32ae1311d0f MFR #ECTM4102T SKU #YLS9ALXBU8B3QP2
Hızlı Özellikler
Motor Category: Chiller/Cooling Tower Motor
Motor Phase: 3 ph
Motor Horsepower: 20 hp
Synchronous Rpm: 1200 rpm
Motor Supply Voltage: 230/460 V
Frame Size: 286T
Genel Bakış
Chiller/Cooling Tower Motor - 20 hp, 1200 rpm, 3 ph, 230/460 V, 286T Frame, TEAO (Totally Enclosed Air Over) Enclosure, 60 Hz, 1180 rpm Base, Foot Mount, Continuous Duty
Teknik Özellikler
Motor Category Chiller/Cooling Tower Motor
Motor Phase 3 ph
Motor Horsepower 20 hp
Synchronous Rpm 1200 rpm
Motor Supply Voltage 230/460 V
Frame Size 286T
Enclosure Type TEAO (Totally Enclosed Air Over)
Frequency Rating 60 Hz
Duty Condition Type Continuous Duty
Base RPM 1180 rpm
Full Load Current 54.00 / 27.00 A
Full Load Efficiency 91.70 %
Volts @ Frequency 230 V @ 60 Hz; 460 V @ 60 Hz
Description Keyword 20 hp
Shaft Diameter 1.8750 in
Overall Length C Dimension 25.63 in
Frame Material Cast Iron
Insulation Class F
Service Factor 1.15
Standards Met CSA, CSA EEV, UR
Weight 420 lbs
Harmonization Code 8501.52.4000
Applications For use in the airstream on chillers and cooling towers.
Manufacturer Product Page http://www.baldor.com/catalog/ECTM4102T
Manufacturer Catalog http://www.baldor.com/mvc/DownloadCenter/Files/CA501
Wiring Diagram https://www.baldorvip.com/servlet/productInfoPacket?nameplate=X&layoutdiagram=X&electrical=X&connectiondiagram=X&language=E&matnr=ECTM4102T&vkorg=BEC
Instructional Video https://youtu.be/j-mFjRPjiFU?list=PLUJtYxZcxl_oZa19yqrOGvU3YxQu5APRV
Additional Details Class F insulated motor with 1.15 service factor that operates within class “B” temperature limits at rated horsepower. Corrosion resistant epoxy finish, double sealed bearings filled with moisture resistant grease, shaft seal/slinger, moisture resistant copper windings, double dipped and baked, stainless steel nameplates and corrosion resistant hardware. Designed for wet, high humidity environments.
Mounting Type Foot
Product Type Air Handling (HVAC) Motors
