Baldor DMG2340 DC Motors
DC Electric Motor - Permanent Magnet, Brushed, 230 V, 1750 rpm rpm, DPFG (Drip-Proof Fully Guarded), 329AT Frame
ITEM #6907b01dad9cc32ae1312094 MFR #DMG2340 SKU #YLSIWB9JRQT9YCG
Hızlı Özellikler
Motor Family: Permanent Magnet
Motor Type: Brushed
Motor Horsepower: 40 hp
DC Armature Voltage: 230 V
Base RPM: 1750 rpm
Enclosure Type: DPFG (Drip-Proof Fully Guarded)
Genel Bakış
DC Electric Motor - Permanent Magnet, Brushed, 230 V, 1750 rpm rpm, DPFG (Drip-Proof Fully Guarded), 329AT Frame
Teknik Özellikler
Motor Family Permanent Magnet
Motor Type Brushed
Motor Horsepower 40 hp
DC Armature Voltage 230 V
Base RPM 1750 rpm
Enclosure Type DPFG (Drip-Proof Fully Guarded)
NEMA / IEC Frame Size 329AT
Armature Full Load Current 174 A
Field Full Load Current 3.70 A

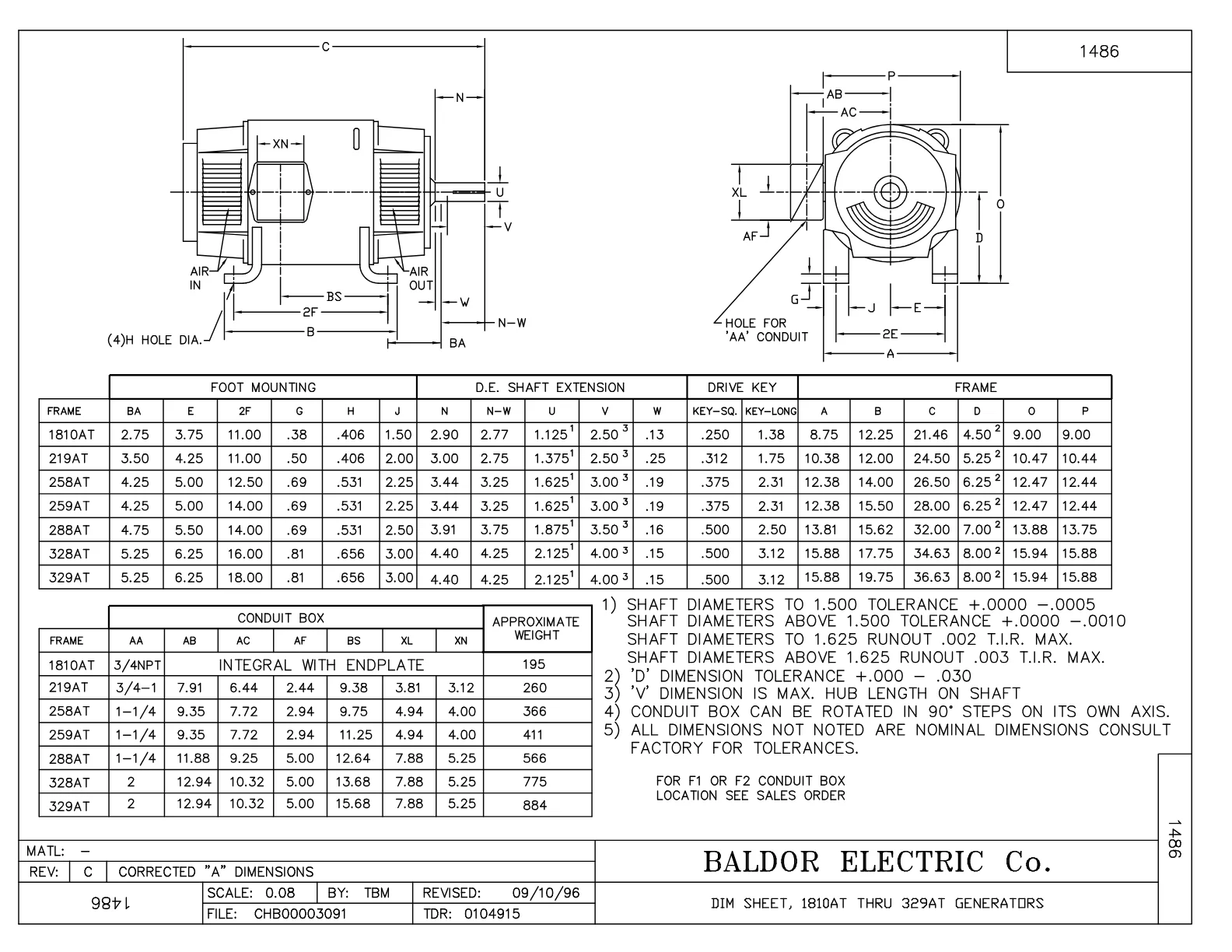

Overall Length C Dimension 36.63 in
Insulation Class F, H
Standards Met NEMA
Drive End Bearing 6211
Weight 996.00 lbs
Opposite Drive End Bearing 6210
Typical Application Crane Mounted Lifting Magnets for Recyclers and Steel Mills
Wattage 39985.6 W
Manufacturer Product Page http://www.baldor.com/products/detail.asp?1=1&page=1&catalogonly=1&catalog=DMG2340&product=DC+Motors&family=Lifting+Magnet%7Cvw%5FDCMotors%5FLiftingMagnet
UPC_NO 781568136041
