Baldor DMG2315 DC Motors
DC Electric Motor - Permanent Magnet, Brushed, 230 V, 1750 rpm rpm, DPFG (Drip-Proof Fully Guarded), 259AT Frame
ITEM #6907b01dad9cc32ae1312088 MFR #DMG2315 SKU #YLSBABZUN0UBQI7
Hızlı Özellikler
Motor Family: Permanent Magnet
Motor Type: Brushed
Motor Horsepower: 15 hp
DC Armature Voltage: 230 V
Base RPM: 1750 rpm
Enclosure Type: DPFG (Drip-Proof Fully Guarded)
Genel Bakış
DC Electric Motor - Permanent Magnet, Brushed, 230 V, 1750 rpm rpm, DPFG (Drip-Proof Fully Guarded), 259AT Frame
Teknik Özellikler
Motor Family Permanent Magnet
Motor Type Brushed
Motor Horsepower 15 hp
DC Armature Voltage 230 V
Base RPM 1750 rpm
Enclosure Type DPFG (Drip-Proof Fully Guarded)

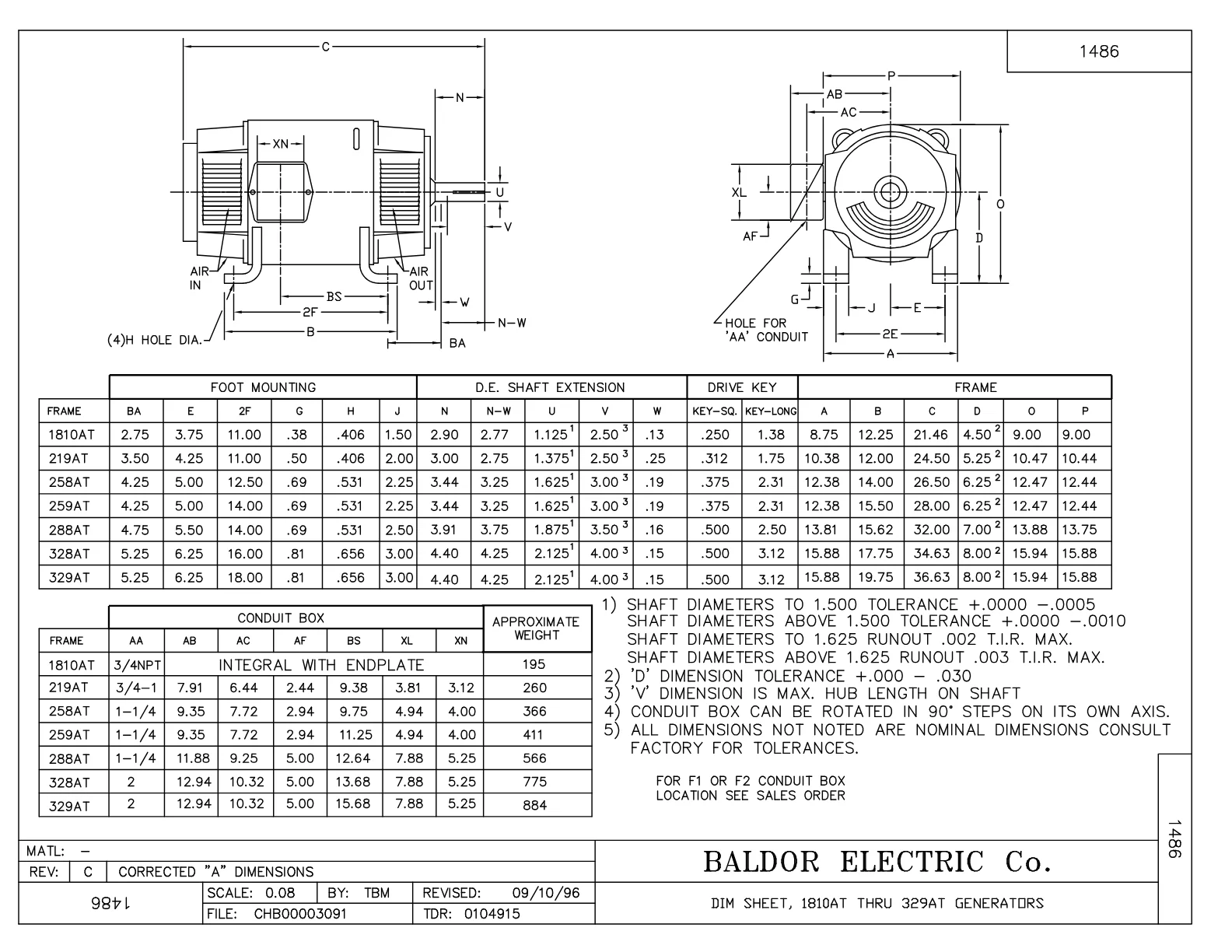

NEMA / IEC Frame Size 259AT
Armature Full Load Current 65 A
Field Full Load Current 1.30 A
Overall Length C Dimension 27.00 in
Insulation Class F, H
Standards Met NEMA
Drive End Bearing 6209
Weight 442.00 lbs
Opposite Drive End Bearing 6207
Typical Application Crane Mounted Lifting Magnets for Recyclers and Steel Mills
Wattage 14994.6 W
Manufacturer Product Page http://www.baldor.com/products/detail.asp?1=1&page=1&catalogonly=1&catalog=DMG2315&product=DC+Motors&family=Lifting+Magnet%7Cvw%5FDCMotors%5FLiftingMagnet#
UPC_NO 781568136003
