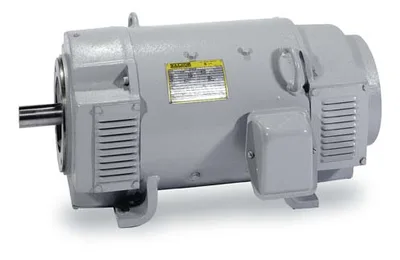

Baldor DMG2310 DC Motors
DC Electric Motor - Permanent Magnet, Brushed, 230 V, 2500 rpm rpm, DPFG (Drip-Proof Fully Guarded), 219AT Frame
ITEM #6907b01dad9cc32ae1312085 MFR #DMG2310 SKU #YLSS1JJI3N62YXJ
Hızlı Özellikler
Motor Family: Permanent Magnet
Motor Type: Brushed
Motor Horsepower: 10 hp
DC Armature Voltage: 230 V
Base RPM: 2500 rpm
Enclosure Type: DPFG (Drip-Proof Fully Guarded)
Genel Bakış
DC Electric Motor - Permanent Magnet, Brushed, 230 V, 2500 rpm rpm, DPFG (Drip-Proof Fully Guarded), 219AT Frame
Teknik Özellikler
Motor Family Permanent Magnet
Motor Type Brushed
Motor Horsepower 10 hp
DC Armature Voltage 230 V
Base RPM 2500 rpm
Enclosure Type DPFG (Drip-Proof Fully Guarded)
NEMA / IEC Frame Size 219AT
Armature Full Load Current 43.5 A
Field Full Load Current 0.72 A

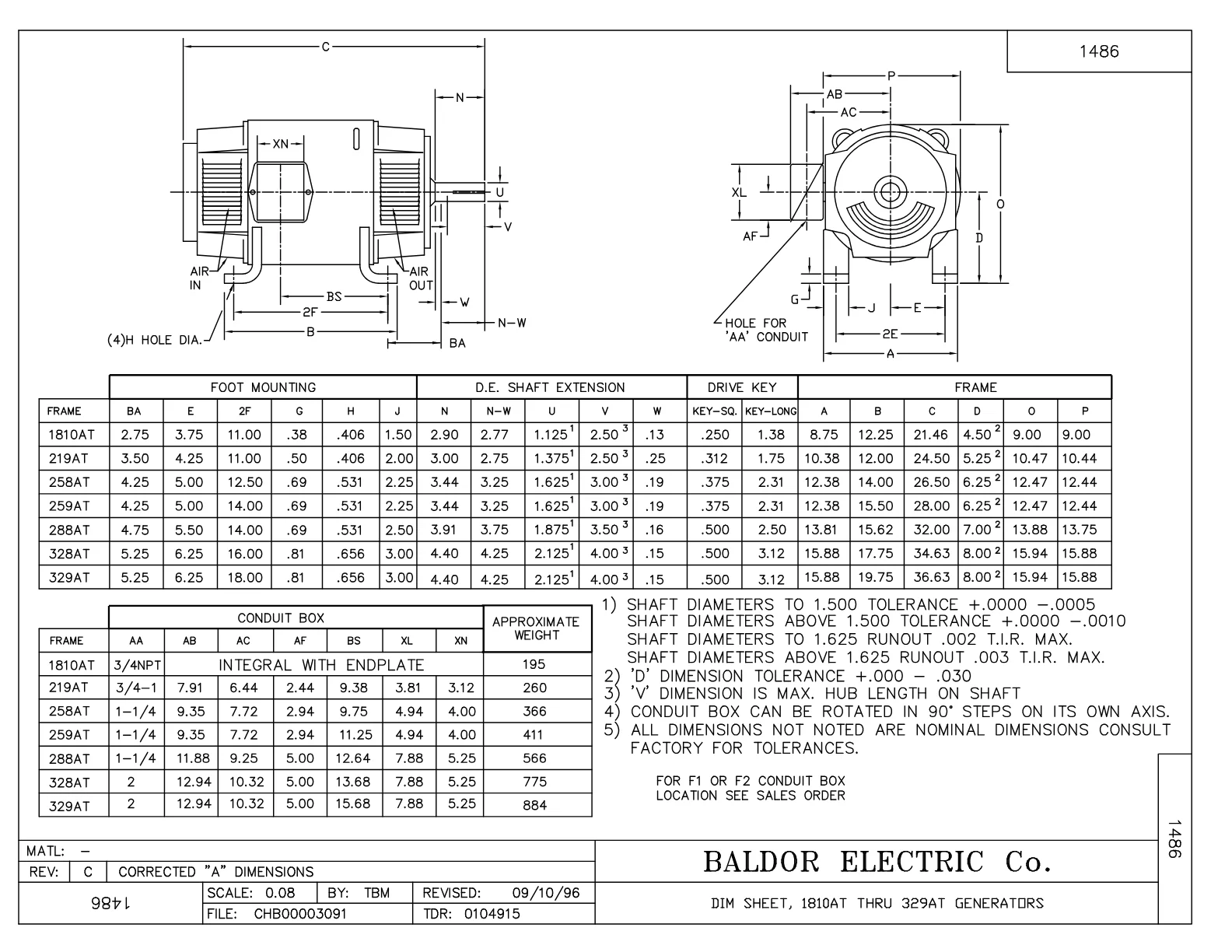

Overall Length C Dimension 24.50 in
Insulation Class F, H
Standards Met NEMA
Drive End Bearing 6207
Weight 270.00 lbs
Opposite Drive End Bearing 6207
Typical Application Crane Mounted Lifting Magnets for Recyclers and Steel Mills
Wattage 9996.4 W
Manufacturer Product Page http://www.baldor.com/products/detail.asp?1=1&page=1&catalogonly=1&catalog=DMG2310&product=DC+Motors&family=Lifting+Magnet%7Cvw%5FDCMotors%5FLiftingMagnet
UPC_NO 781568135990
