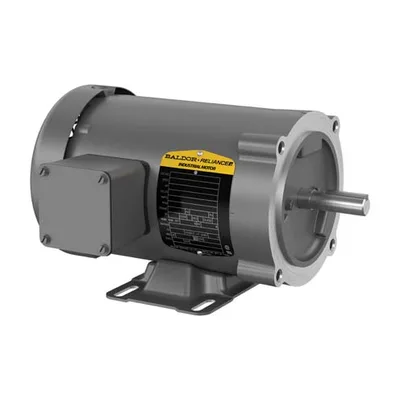

Baldor CM3538 AC Motors
General Purpose Motor - 1/2 hp, 1800 rpm, 3 ph, 230/460 V, 56C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1720 rpm Base, C-Face / Foot Mount, Continuous Duty
ITEM #6907a779ad9cc32ae130a0d4 MFR #CM3538 SKU #YLSL8DECXRLH6PJ
Hızlı Özellikler
Motor Phase: 3 ph
Motor Horsepower: 1/2 hp
Synchronous Rpm: 1800 rpm
Motor Supply Voltage: 230/460 V
Frame Size: 56C
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Genel Bakış
General Purpose Motor - 1/2 hp, 1800 rpm, 3 ph, 230/460 V, 56C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1720 rpm Base, C-Face / Foot Mount, Continuous Duty
Özellikler ve Avantajlar
- Ball bearings with a locked drive end bearing and heavy-gauge steel or cast iron frame
- Super-E® motors have NEMA Premium® efficiency and 3 year warranty
- Applications: Pumps, fans, conveyors, machine tools, gear reducers and other applications requiring a NEMA C-face motor
Teknik Özellikler
Motor Phase 3 ph
Motor Horsepower 1/2 hp
Synchronous Rpm 1800 rpm
Motor Supply Voltage 230/460 V
Frame Size 56C
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
Frequency Rating 60 Hz
Base RPM 1720 rpm
Duty Condition Type Continuous Duty
Mounting Type C-Face / Foot
Full Load Current 1.00 A
Full Load Efficiency 74.00 %
Amps @ Voltage 2.0 A @ 230 V; 2.5 A @ 208 V; 1.0 A @ 460 V
Volts @ Frequency 230 V @ 60 Hz; 460 V @ 60 Hz
Description Keyword 1/2 hp
Shaft Diameter 0.6250 in
Overall Length C Dimension 11.35 in
Warranty 2 Year Warranty
Type Of Bearing Ball
NEMA Design Class B
Service Factor 1.25
Frame Material Steel
Insulation Class B
IP Rating 44
Standards Met UR, CSA
Weight 23 lbs
Applications Pumps, fans, conveyors, machine tools, gear reducers and other applications requiring a NEMA C-face motor.
Harmonization Code 8501.51.4040
UPC_NO 781568110126
Manufacturer Catalog http://www.baldor.com/mvc/DownloadCenter/Files/CA501
Manufacturer Product Page http://www.baldor.com/catalog/CM3538
Motor Category General Purpose Motor
Wiring Diagram https://www.baldorvip.com/servlet/productInfoPacket?nameplate=X&layoutdiagram=X&electrical=X&connectiondiagram=X&language=E&matnr=CM3538&vkorg=BEC
Instructional Video https://youtu.be/j-mFjRPjiFU?list=PLUJtYxZcxl_oZa19yqrOGvU3YxQu5APRV
Product Type General Purpose Motors
