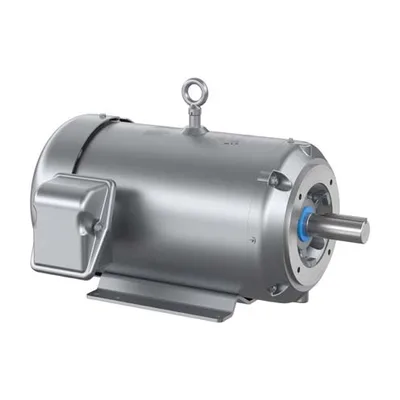

Baldor CESSWDM23933T AC Motors
General Purpose Washdown Duty Motor (Stainless Steel) - 15 hp, 1800 rpm, 3 ph, 230/460 V, 254TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1765 rpm Base, C-Face / Foot Mount
ITEM #6906c0cf8eb094c2128eaf53 MFR #CESSWDM23933T SKU #YLSMYSFP8D9YQUH
Hızlı Özellikler
Motor Category: General Purpose Motor (Stainless Steel)
Motor Phase: 3 ph
Motor Horsepower: 15 hp
Synchronous Rpm: 1800 rpm
Motor Supply Voltage: 230/460 V
Frame Size: 254TC
Genel Bakış
General Purpose Washdown Duty Motor (Stainless Steel) - 15 hp, 1800 rpm, 3 ph, 230/460 V, 254TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1765 rpm Base, C-Face / Foot Mount
Özellikler ve Avantajlar
- All external surfaces 300 Series stainless steel: motor frame, endplates, conduit box, shaft, and base
- Moisture-resistant 200°C ISR® (Inverter Spike-Resistant) magnet wire
- Four condensate drains in each endplate
- Endplate rabbets sealed and conduit box gasketed
- Lip seals
- Especially effective in highly-corrosive environments where paint or other finishes do not hold up
- NEMA Premium® efficiency
- Applications: Food processing, packaging, outdoor and highly-corrosive environments
Teknik Özellikler
Motor Category General Purpose Motor (Stainless Steel)
Motor Phase 3 ph
Motor Horsepower 15 hp
Synchronous Rpm 1800 rpm
Motor Supply Voltage 230/460 V
Frame Size 254TC
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
Frequency Rating 60 Hz
Duty Condition Type Continuous Duty, Washdown Duty
Base RPM 1765 rpm
Full Load Current 17.70 A
Full Load Efficiency 92.40 %
Amps @ Voltage 38.7 A @ 208 V; 35.4 A @ 230 V; 17.7 A @ 460 V
Volts @ Frequency 230 V @ 60 Hz; 460 V @ 60 Hz
Description Keyword 15 hp
Shaft Diameter 1.6250 in
Overall Length C Dimension 24.67 in
Service Factor 1.15
Frame Material Stainless Steel
Insulation Class F
IP Rating 56
Standards Met UR, CSA
Harmonization Code 8501.52.4000
Weight 246 lbs
Applications Food processing, packaging, outdoor and highly corrosive environments.
Additional Details All external surfaces are 300 series stainless steel: motor frame, endplates, conduit box, shaft and base. Moisture resistant insulation system. Four condensate drains in each endplate. Endplate rabbets sealed and conduit box gasketed. Labyrinth seals each end. Especially effective in highly corrosive environments where paint or other finishes do not hold up.
Manufacturer Catalog http://www.baldor.com/mvc/DownloadCenter/Files/CA501
Manufacturer Product Page http://www.baldor.com/catalog/CESSWDM23933T
UPC_NO 781568461990
Wiring Diagram https://www.baldorvip.com/servlet/productInfoPacket?nameplate=X&layoutdiagram=X&electrical=X&connectiondiagram=X&language=E&matnr=CESSWDM23933T&vkorg=BEC
Instructional Video https://youtu.be/j-mFjRPjiFU?list=PLUJtYxZcxl_oZa19yqrOGvU3YxQu5APRV
Mounting Type C-Face / Foot
Product Type Washdown Duty Motors
