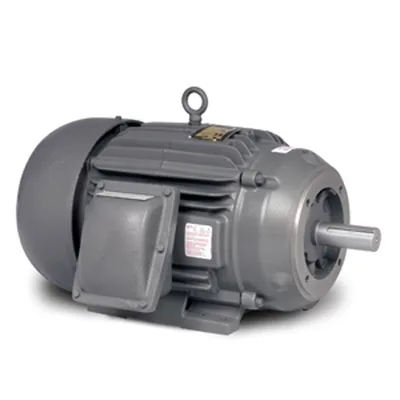

Baldor CEM7174T
Explosion Proof / Hazardous Location Motor - 10 hp, 3600 rpm, 3 ph, 190/380//230/460 V, 215TC Frame, EPFC (Explosion Proof Fan Cooled) Enclosure, 50/60 Hz, 3500 rpm / 2900 rpm Base, C-Face / Foot Mount, Continuous Duty
Motor CategoryGeneral Purpose Motor
Motor Phase3 ph
Motor Horsepower10 hp
Synchronous Rpm3600 rpm
Motor Supply Voltage190/380//230/460 V
Frame Size215TC
Ürün Hakkında
Explosion Proof / Hazardous Location Motor - 10 hp, 3600 rpm, 3 ph, 190/380//230/460 V, 215TC Frame, EPFC (Explosion Proof Fan Cooled) Enclosure, 50/60 Hz, 3500 rpm / 2900 rpm Base, C-Face / Foot Mount, Continuous Duty
Baldor CEM7174T
- Orijinal ve sertifikalı Baldor ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Motor CategoryGeneral Purpose Motor
Motor Phase3 ph
Motor Horsepower10 hp
Synchronous Rpm3600 rpm
Motor Supply Voltage190/380//230/460 V
Frame Size215TC
Enclosure TypeEPFC (Explosion Proof Fan Cooled)
Frequency Rating50/60 Hz
Duty Condition TypeContinuous Duty
Base RPM3500 rpm / 2900 rpm
Full Load Current11.80 A
Full Load Efficiency90.20 %
Amps @ Voltage23.6 A @ 230 V; 21.6 A @ 190 V; 11.8 A @ 460 V; 11.0 A @ 380 V
Volts @ Frequency190 V @ 50 Hz; 380 V @ 50 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz
Shaft Diameter1.3750 in
Overall Length C Dimension20.65 in
Service Factor1.00
Frame MaterialCast Iron
Insulation ClassB
IP Rating44
Standards MetCSA, UL
Temperature CodeT3C
Group & ClassDivision 1, Class I - Group D, Class II - Group F & G
Harmonization Code8501.52.4000
Weight235 lbs
ApplicationsIdeal for use on pumps, blowers, valves, and gearboxes where hazardous fumes and dust are present requiring Div 1 UL listed and/or CSA approved enclosures.
Additional DetailsUL & CSA approved for Class I, Group D; Class I, Group D, Class II, Group F & G. Totally enclosed heavy gauge steel and cast iron construction. Corrosion resistant epoxy paint. Single and Three Phase designs. 1.0 Service Factor. Three Phase 143T frame and larger have 60Hz & 50Hz data included on the nameplate. Super-E® explosion proof motors have NEMA Premium® efficiency. Fixed speed sine wave operation only. No Drip Cover.
Mounting TypeC-Face / Foot
Product TypeExplosion Proof (Hazardous Location) Motors
