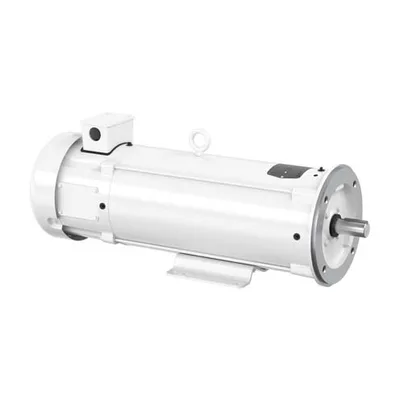

Baldor CDPWD3605 DC Motors
DC Electric Motor - Permanent Magnet, Brushed, 180 V, 1750 rpm rpm, TEFC (Totally Enclosed Fan Cooled), 1810ATC Frame
ITEM #6907b012ad9cc32ae1311e17 MFR #CDPWD3605 SKU #YLS13FT18PPPOII
Hızlı Özellikler
Motor Family: Permanent Magnet
Motor Type: Brushed
Motor Horsepower: 5 hp
DC Armature Voltage: 180 V
Base RPM: 1750 rpm
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Genel Bakış
DC Electric Motor - Permanent Magnet, Brushed, 180 V, 1750 rpm rpm, TEFC (Totally Enclosed Fan Cooled), 1810ATC Frame
Özellikler ve Avantajlar
- NEMA C-face with removable base
- Tach adaptable
- Class F insulation
- Double sealed ball bearings
- 20:1 constant torque speed range
- UL and CSA recognized
- No dual mounting base holes on 1/4 - 1/2 hp
- Applications: Conveyors, Mixers, packaging machinery and other applications requiring variable speed and constant torque Washdown Duty
- Moisture sealant on bolt heads between frame and endplates, neoprene gasketed conduit box
- Double sealed ball bearings
- Forsheda® running contact v-ring slinger
- Stainless steel shaft
- Electrostatic epoxy paint coating
- Class F insulation
- 20:1 constant torque speed range
- Tach adaptable
- Applications: Food processing conveyors and feeders exposed to high pressure wash down
- 1/4 to 1/2 hp motors are TENV, all others are TEFC
Teknik Özellikler
Motor Family Permanent Magnet
Motor Type Brushed
Motor Horsepower 5 hp
DC Armature Voltage 180 V
Base RPM 1750 rpm
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
NEMA / IEC Frame Size 1810ATC
Armature Full Load Current 24.5 A
Overall Length C Dimension 27.83 in
Insulation Class F
Standards Met NEMA
Drive End Bearing 6206
Weight 157.00 lbs
Opposite Drive End Bearing 6206
Typical Application Food Processing Conveyors and Feeders Where The Motor is Exposed to High Pressure Wash Down
Wattage 3730.0 W
Manufacturer Product Page http://www.baldor.com/products/detail.asp?1=1&catalog=CDPWD3605&product=DC+Motors&family=Washdown%7Cvw%5FDCMotors%5FWashdown
UPC_NO 781568133910
