Baldor CDPT3605 DC Motors
DC Electric Motor - Permanent Magnet, Brushed, 180 V, 1750 rpm rpm, TEFC (Totally Enclosed Fan Cooled), 1810ATC Frame
ITEM #6907b008ad9cc32ae1311c3a MFR #CDPT3605 SKU #YLSUWDWQNB2T7SJ
Hızlı Özellikler
Motor Family: Permanent Magnet
Motor Type: Brushed
Motor Horsepower: 5 hp
DC Armature Voltage: 180 V
Base RPM: 1750 rpm
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Genel Bakış
DC Electric Motor - Permanent Magnet, Brushed, 180 V, 1750 rpm rpm, TEFC (Totally Enclosed Fan Cooled), 1810ATC Frame
Teknik Özellikler
Motor Family Permanent Magnet
Motor Type Brushed
Motor Horsepower 5 hp
DC Armature Voltage 180 V
Base RPM 1750 rpm
Enclosure Type TEFC (Totally Enclosed Fan Cooled)

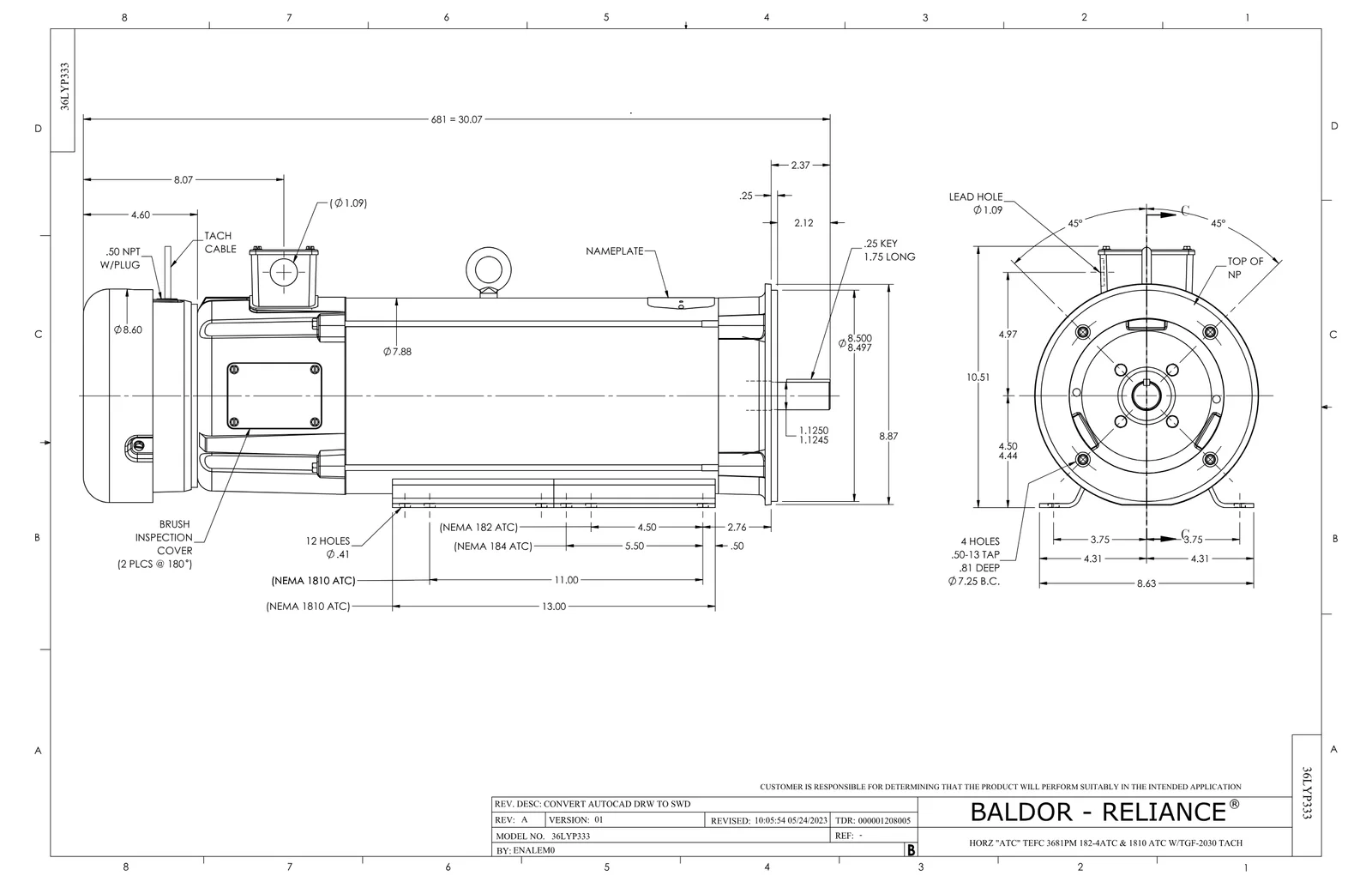

NEMA / IEC Frame Size 1810ATC
Armature Full Load Current 24.5 A
Overall Length C Dimension 22.07 in
Insulation Class F
Standards Met NEMA
Drive End Bearing 6206
Weight 164.00 lbs
Opposite Drive End Bearing 6206
Recommended Control Bc155
Typical Application Conveyors and Metering Pumps Where Precise Speed Regulation is Required
Wattage 3730.0 W
Manufacturer Product Page http://www.baldor.com/products/detail.asp?1=1&page=1&catalogonly=1&catalog=CDPT3605&product=DC+Motors&family=Integral+Tach%7Cvw%5FDCMotors%5FIntegralTach
UPC_NO 781568133804
