Baldor CDPT3575 DC Motors
DC Electric Motor - Permanent Magnet, Brushed, 180 V, 1750 rpm rpm, TEFC (Totally Enclosed Fan Cooled), 143TC Frame
ITEM #6907b012ad9cc32ae1311e11 MFR #CDPT3575 SKU #YLSBHYE5SE0IQZ8
Hızlı Özellikler
Motor Family: Permanent Magnet
Motor Type: Brushed
Motor Horsepower: 1-1/2 hp
DC Armature Voltage: 180 V
Base RPM: 1750 rpm
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Genel Bakış
DC Electric Motor - Permanent Magnet, Brushed, 180 V, 1750 rpm rpm, TEFC (Totally Enclosed Fan Cooled), 143TC Frame
Teknik Özellikler
Motor Family Permanent Magnet
Motor Type Brushed
Motor Horsepower 1-1/2 hp
DC Armature Voltage 180 V
Base RPM 1750 rpm
Enclosure Type TEFC (Totally Enclosed Fan Cooled)

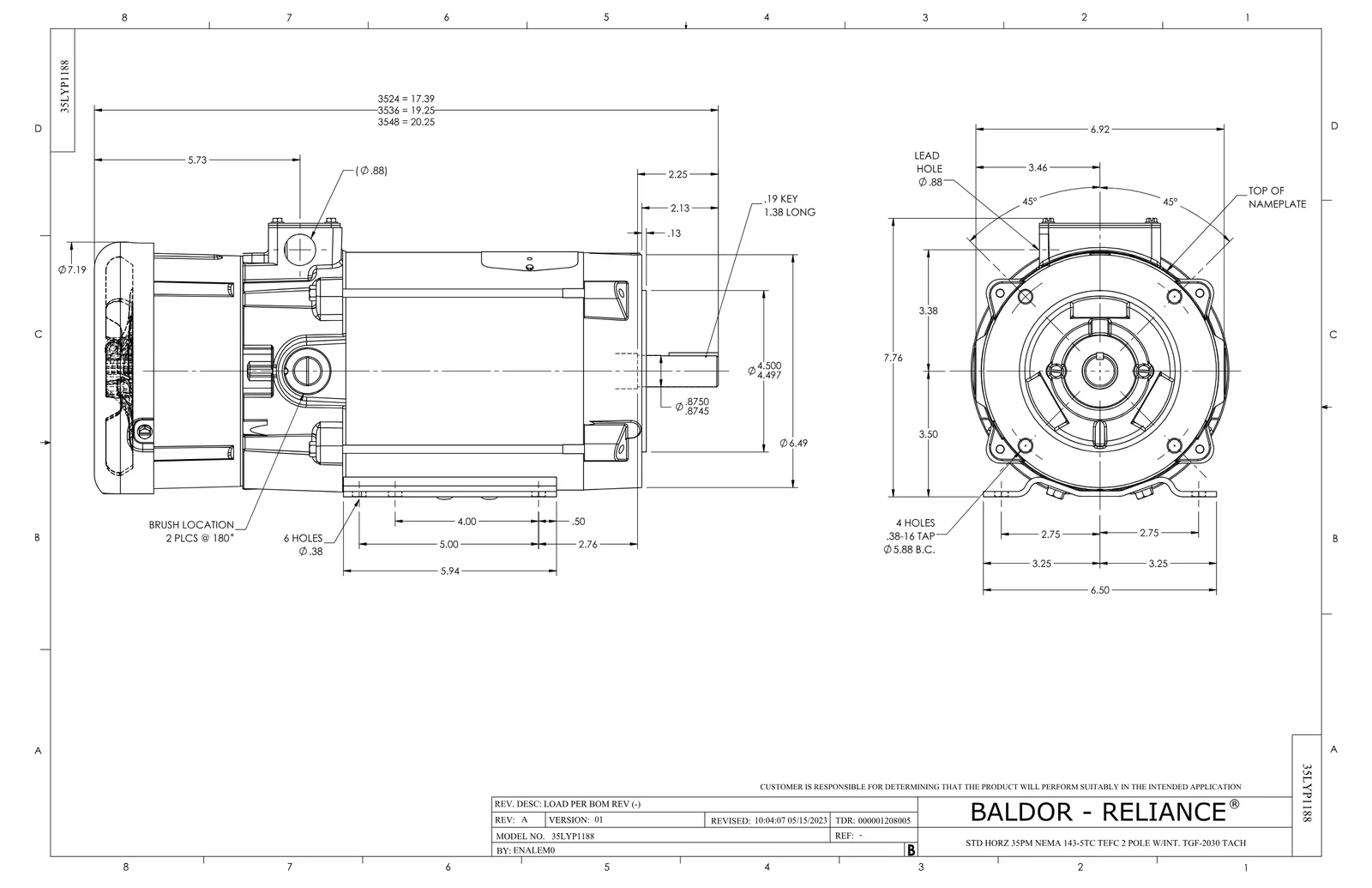

NEMA / IEC Frame Size 143TC
Armature Full Load Current 7.7 A
Overall Length C Dimension 15.25 in
Insulation Class F
Standards Met NEMA
Drive End Bearing 6205
Weight 71.00 lbs
Opposite Drive End Bearing 6205
Recommended Control Bc140
Typical Application Conveyors and Metering Pumps Where Precise Speed Regulation is Required
Wattage 1119.0 W
Manufacturer Product Page http://www.baldor.com/products/detail.asp?1=1&page=1&catalogonly=1&catalog=CDPT3575&product=DC+Motors&family=Integral+Tach%7Cvw%5FDCMotors%5FIntegralTach
UPC_NO 781568133774
