Baldor CDP3440-V24 DC Motors
DC Electric Motor - Permanent Magnet, Brushed, 24 V, 1800 rpm rpm, TEFC (Totally Enclosed Fan Cooled), 56CZ Frame
ITEM #6907adfbad9cc32ae131046a MFR #CDP3440-V24 SKU #YLSZN1PF927Z7ZB
Hızlı Özellikler
Motor Family: Permanent Magnet
Motor Type: Brushed
Motor Horsepower: 3/4 hp
DC Armature Voltage: 24 V
Base RPM: 1800 rpm
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Genel Bakış
DC Electric Motor - Permanent Magnet, Brushed, 24 V, 1800 rpm rpm, TEFC (Totally Enclosed Fan Cooled), 56CZ Frame
Özellikler ve Avantajlar
- NEMA C-face
- Class F insulation
- Double sealed ball bearings
- Top-mounted terminal studs
- Not tach adaptable
- 1/4 HP to 1/2 HP are TENV
- 3/4 HP to 1 HP are TEFC
- Applications: Battery operation for portable pumps, fans, augers, winches and lifts
Teknik Özellikler
Motor Family Permanent Magnet
Motor Type Brushed
Motor Horsepower 3/4 hp
DC Armature Voltage 24 V
Base RPM 1800 rpm
Enclosure Type TEFC (Totally Enclosed Fan Cooled)

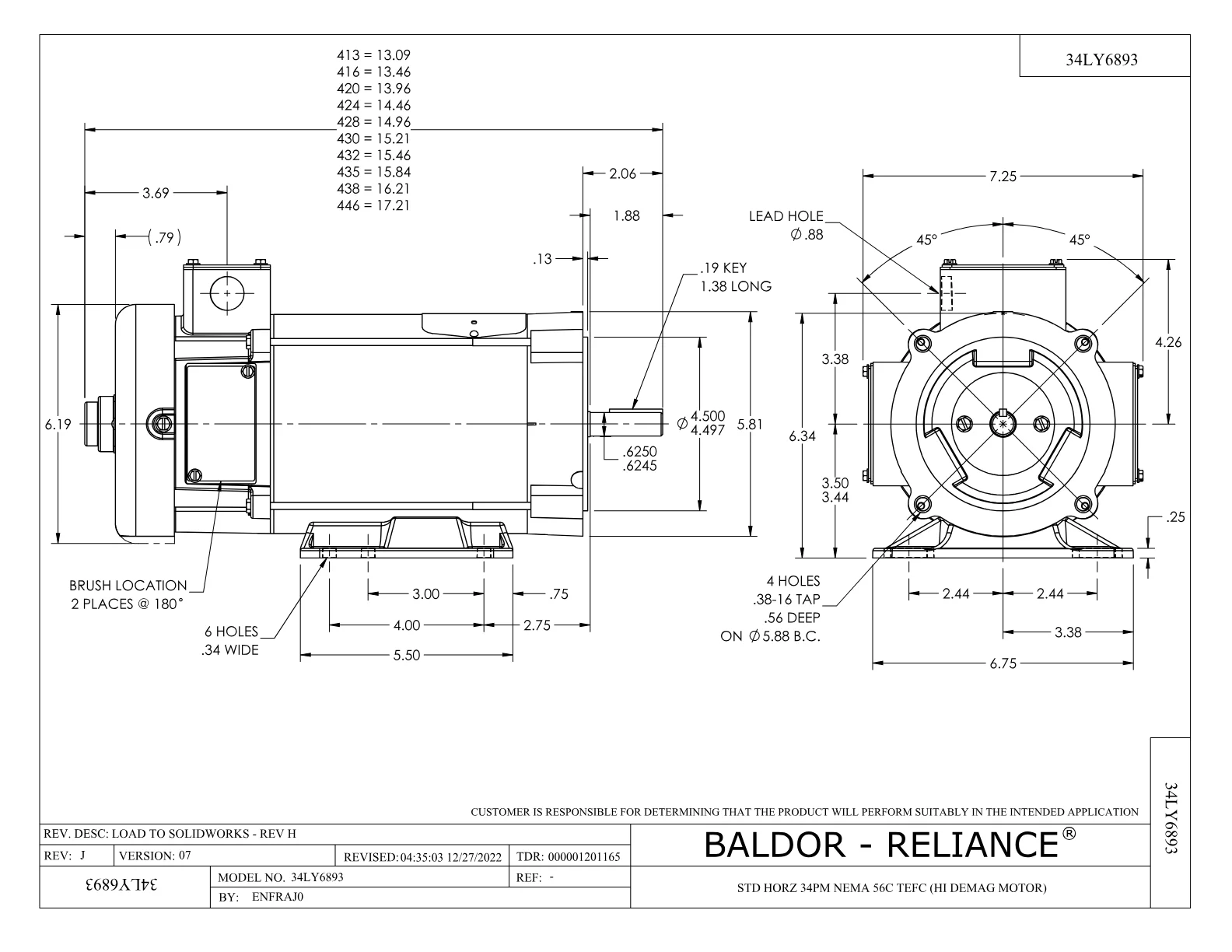

NEMA / IEC Frame Size 56CZ
Armature Full Load Current 29.4 A
Insulation Class F
Standards Met NEMA
Weight 35.00 lbs
Manufacturer Product Page http://www.baldor.com/products/detail.asp?1=1&catalog=CDP3440-V24&product=DC+Motors&family=General+Purpose%7Cvw%5FDCMotors%5FGeneralPurpose
UPC_NO 781568387894
