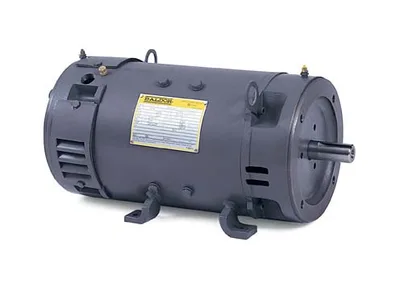

Baldor CD2010P-2 DC Motors
DC Electric Motor - Shunt Wound, Brushed, 240 V, 1750 rpm rpm, DPFG (Drip-Proof Fully Guarded), 219ATC Frame
ITEM #6907b117ad9cc32ae1312b67 MFR #CD2010P-2 SKU #YLSX9DOY48ISHY6
Hızlı Özellikler
Motor Family: Shunt Wound
Motor Type: Brushed
Motor Horsepower: 10 hp
DC Armature Voltage: 240 V
Base RPM: 1750 rpm
Enclosure Type: DPFG (Drip-Proof Fully Guarded)
Genel Bakış
DC Electric Motor - Shunt Wound, Brushed, 240 V, 1750 rpm rpm, DPFG (Drip-Proof Fully Guarded), 219ATC Frame
Teknik Özellikler
Motor Family Shunt Wound
Motor Type Brushed
Motor Horsepower 10 hp
DC Armature Voltage 240 V
Base RPM 1750 rpm
Enclosure Type DPFG (Drip-Proof Fully Guarded)
NEMA / IEC Frame Size 219ATC
DC Field Voltage 120/240 V
Armature Full Load Current 36.6 A
Field Full Load Current 1.26 A

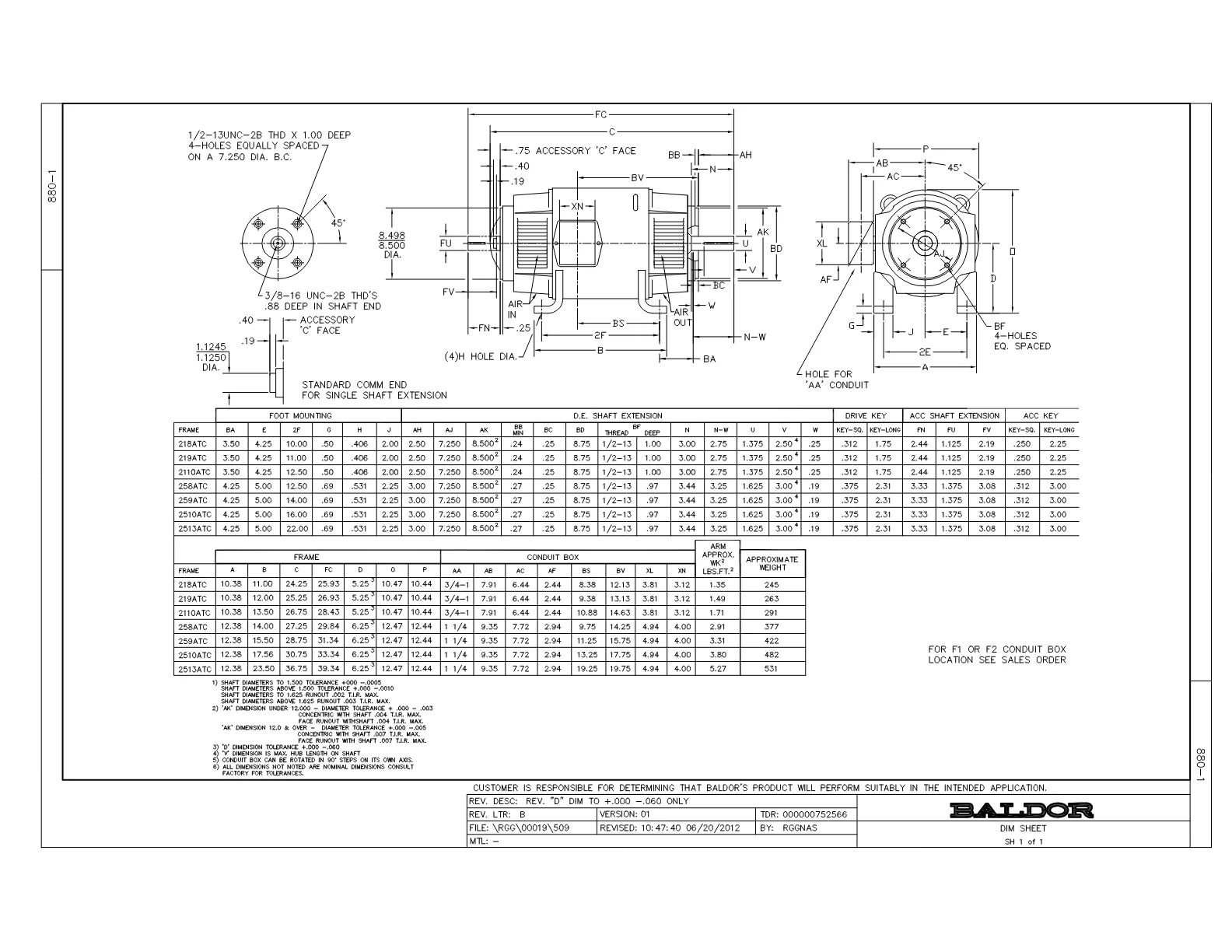

Overall Length C Dimension 25.25 in
Insulation Class F
Standards Met NEMA
Weight 275.00 lbs
Recommended Blower Kit Fvb3210
Recommended Control Bc20H210-Cl
Recommended Tach. Kit Tkp1836Xp
Wattage 7460.0 W
Manufacturer Product Page http://www.baldor.com/products/detail.asp?1=1&catalog=CD2010P-2&product=DC+Motors&family=General+Purpose%7Cvw%5FDCMotors%5FGeneralPurpose
UPC_NO 781568134078
