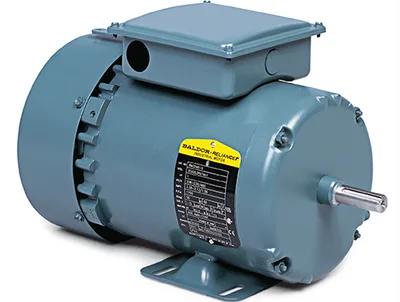

Baldor BM3546-S AC Motors
Short Series Brake Motor - 1 hp, 1800 rpm, 3 ph, 208-230/460 V, 56 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1750 rpm Base, Foot Mount, Continuous Duty
ITEM #6907aab2ad9cc32ae130d3ca MFR #BM3546-S SKU #YLSPGPEQAHQNSLS
Hızlı Özellikler
Motor Category: Short Series Brake Motor
Motor Phase: 3 ph
Motor Horsepower: 1 hp
Synchronous Rpm: 1800 rpm
Motor Supply Voltage: 208-230/460 V
Frame Size: 56
Genel Bakış
Short Series Brake Motor - 1 hp, 1800 rpm, 3 ph, 208-230/460 V, 56 Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1750 rpm Base, Foot Mount, Continuous Duty
Teknik Özellikler
Motor Category Short Series Brake Motor
Motor Phase 3 ph
Motor Horsepower 1 hp
Synchronous Rpm 1800 rpm
Motor Supply Voltage 208-230/460 V
Frame Size 56
Enclosure Type TEFC (Totally Enclosed Fan Cooled)
Frequency Rating 60 Hz
Duty Condition Type Continuous Duty
Base RPM 1750 rpm
Full Load Current 1.60 A
Full Load Efficiency 82.50 %
Amps @ Voltage 1.6 A @ 460 V; 3.1 A @ 230 V; 3.4 A @ 208 V
Volts @ Frequency 208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz
Shaft Diameter 0.6250 in
Description Keyword 1 hp
Overall Length C Dimension 14.37 in
Service Factor 1.15
Frame Material Steel
Insulation Class F
Thermal Protection Manual
IP Rating 44
Standards Met CE, CSA, UR
Harmonization Code 8501.51.6040
Weight 41 lbs
Applications Unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.
Additional Details UL/CSA recognized and CE certified. Dodge short series brakes are spring set, magnetically released power off type brakes and integrally mounted in the motor for the most compact design. Brakes are single phase with built-in rectifier to DC. Brakes have a manual release lever. Leads are brought to the motor conduit box for connecting to the motor leads (56-140 frames) or connecting separately (180-210 frames). 56-140 frames have low profile F3 top-mounted conduit box. SSB brake motors can be universally mounted and are inverter ready. 143-145TY frame motors have a special base with 56, 143 and 145 slots used onOEM conveyors.
Manufacturer Catalog http://www.baldor.com/mvc/DownloadCenter/Files/CA501
Manufacturer Product Page http://www.baldor.com/catalog/BM3546-S
Wiring Diagram https://www.baldorvip.com/servlet/productInfoPacket?nameplate=X&layoutdiagram=X&electrical=X&connectiondiagram=X&language=E&matnr=BM3546-S&vkorg=BEC
Instructional Video https://youtu.be/j-mFjRPjiFU?list=PLUJtYxZcxl_oZa19yqrOGvU3YxQu5APRV
Mounting Type Foot
Product Type Brake Motors
