ABB 2CPX054239R9999

Ürün Hakkında

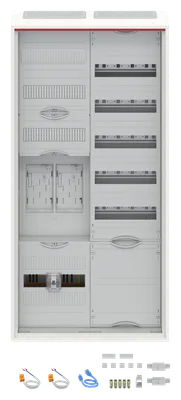

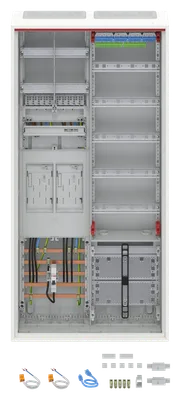

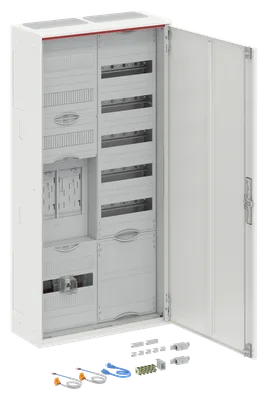

Meter board, series ComfortLine A, fully assembled cabinet, with BKE-I, Expansion option: Lateral, for the internal use, with Door, class of protection II (double insulated), degree of protection IP31, applicable standards: DIN VDE 0603-2-1, VDE AR-N 4100:2019-04, Impact strength IK07, Rated operational voltage 400V AC 50/60 Hz, rated current 63 A, Powder-coated, in RAL 9016, enclosure out of sheet steel, single-leaf door, door out of sheet steel, with Standard closure, door opening angle 120 degree, door hinge right or left, rear wall out of sheet steel / plastic, cable entry on top via membrane flange mounted, on bottom via 2x cable entry flange included, on side via flange opening pre-punched, rear wall cable entry part is pre-punched, dimensions in mm (H x W x D): 1100 x 550 x 215, Metering module pre-wired, Earthing system TN-S, 5-pole, Stecktechnik, net side compartment, meter space: with busbar, pre-assembled for main switch SH, incoming terminals up to 25 mm², system side compartment, meter space: with Main branch terminal, compartment for additional devices of eHZ 150 mm, Number of meter spaces single tariff 2, Number of distributor rows 5, Grid unit 7 GU, Overall height 3, panel width 2, Space units 168, covers out of Plastic, RAL 7035

ABB 2CPX054239R9999

• Orijinal ve sertifikalı ABB ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Dokümanlar ve CAD

Belgeler 14
