ABB 2CPX052611R9999

Ürün Hakkında

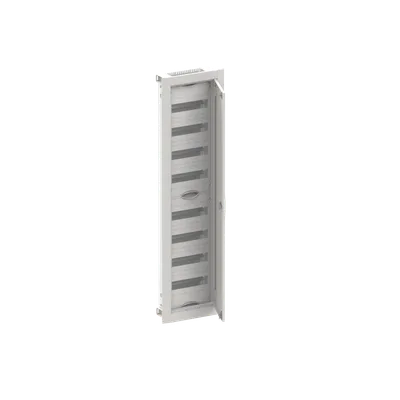

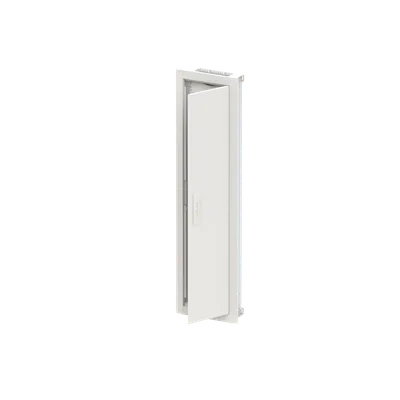

Compact distribution board, partly assembled cabinet, for the internal use, with closed doorframe and door, class of protection II (double insulated), in combination with earthing set (accessory) we can achieve protection class 1, degree of protection IP30, applicable standards: EN 61439-1, EN 61439-3, Impact strength IK09, Rated operational voltage 400V AC 50/60 Hz, rated current 125 A, Powder-coated, in RAL 9016, enclosure out of sheet steel, metal door , door out of sheet steel, in RAL 9016, with Standard closure, door opening angle 120 degree, door hinge right or left, cable entry on top via cable entry slide part is pre-punched, on bottom via cable entry slide part is pre-punched, dimensions in mm (H x W x D): 1314 x 365 x 125, Shutter frame dimensions in mm (H x W x D): 1314 x 365 x 15, 15 mm, possible plaster compensation up to 25 mm, Grid unit 8 GU, panel width 1, Space units 96, Row distance in mm: 125, covers out of Plastic, 90 degree press and turn closure, RAL 7035, with N/PE Quick-terminal, cable fastening rail integrated, expanded with distributor fields, device support removable

ABB 2CPX052611R9999

• Orijinal ve sertifikalı ABB ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Dokümanlar ve CAD

Belgeler 1
