ABB 2CPX052196R9999

Ürün Hakkında

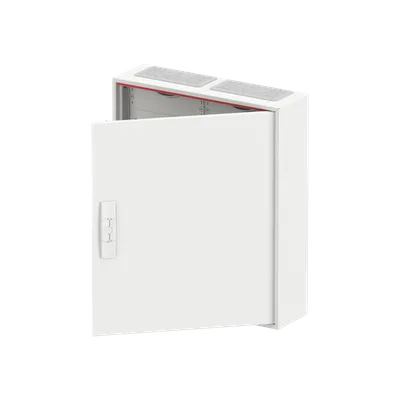

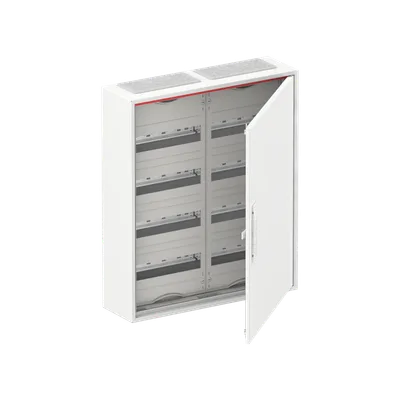

Compact distribution board, partly assembled cabinet, for the internal use, with Door, class of protection II (double insulated), in combination with earthing set (accessory) we can achieve protection class 1, degree of protection IP44, applicable standards: EN 61439-1, EN 61439-3, Impact strength IK07, Rated operational voltage 400V AC 50/60 Hz, rated current 125 A, Powder-coated, in RAL 9016, enclosure out of sheet steel, single-leaf door, door out of sheet steel, in RAL 9016, with Standard closure, door opening angle 120 degree, door hinge right or left, cable entry on top via membrane flange mounted, on bottom via flange opening pre-punched, dimensions in mm (H x W x D): 650 x 550 x 160, Grid unit 4 GU, panel width 2, Space units 96, Row distance in mm: 125, covers out of Plastic, 90 degree press and turn closure, RAL 7035, with N/PE Quick-terminal, cable fastening rail integrated, Assembled with distribution module, device support removable

ABB 2CPX052196R9999

• Orijinal ve sertifikalı ABB ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Dokümanlar ve CAD

Belgeler 3
