ABB 2CPX030021R9999

Ürün Hakkında

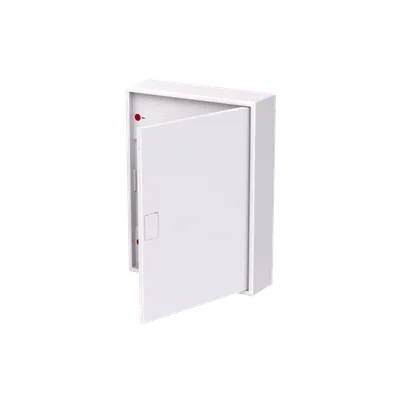

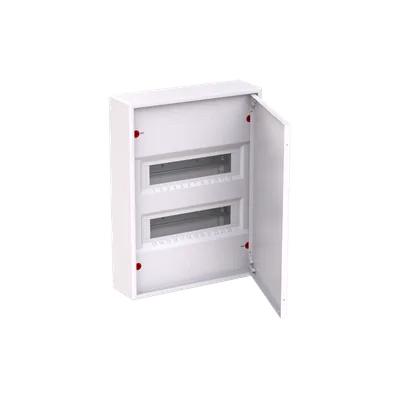

Consumer unit, partly assembled, for the internal use, with Door, class of protection II (double insulated), degree of protection IP30, applicable standards: EN 60670-24, Impact strength IK07, Rated operational voltage 400V AC 50/60 Hz, rated current 63 A, Glow wire resistance 750°C, Untreated, in RAL 9016, enclosure out of thermoplast, metal door , door out of sheet steel, in RAL 9016, door opening angle 120 degree, door hinge right or left, cable entry on top via pre-punched, on bottom via pre-punched, on side via pre-punched, rear wall pre-punched, dimensions in mm (H x W x D): 453 x 339 x 99, Space units 24, Row distance in mm: 125, covers out of Plastic, Quick sealable connection, with N/PE screw terminal, cable fastening rail integrated, Assembled with DIN-rail, device support removable

ABB 2CPX030021R9999

• Orijinal ve sertifikalı ABB ürünü
• Dünya genelinde tedarik ağıyla hızlı temin
• Teknik ekibimizden ürün seçimi ve uyumluluk desteği
• Muadil ve alternatif ürün önerisi
• Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Dokümanlar ve CAD

Belgeler 4
