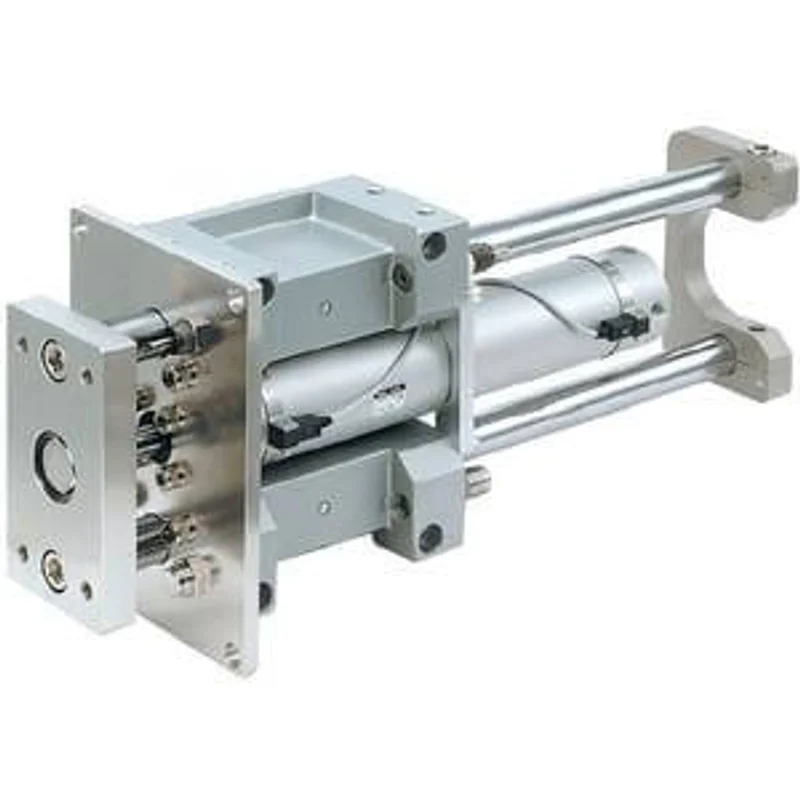

Click to zoom
Photo may not represent actual item. Refer to name and product specs for all details.
MGGMF50-250
MGG GUIDED CYLINDER with 50 mm Bore Size
ITEM #68e2e64d3cb4ec1179f43686 MFR #MGGMF50-250 SKU #YLS87SQ73MCYD5E
Quick Specs
Guided Cylinder Type: Dual Rod Slide Unit
Bore Diameter: 50 mm
Country of Origin: US
Stroke: 250 mm
Piston Action: Double-Acting
Rod Type: Single Rod
Overview
MGG GUIDED CYLINDER with 50 mm Bore Size
Specifications
Guided Cylinder Type Dual Rod Slide Unit
Bore Diameter 50 mm
Country of Origin US
Stroke 250 mm
Piston Action Double-Acting
Rod Type Single Rod
Bearings Slide Bearing
Cushion Type Shock Absorber
Port Size 1/4 BSPT
Proof Pressure +1.5 MPa
Operating Pressure Range +0.15 to +1 MPa
Push Force At 100 Psi 1370 N
Pull Force At 100 Psi 1160 N
Operating Temperature Range -10 to +80 °C
Standards Met JIS
Overall Length 535 mm
Overall Width 210 mm
Overall Height 160 mm
Port Thread Standard BSPT
Maximum Operating Pressure +1 Mpa2
Minimum Operating Pressure +0.15 MPa
Mounting Type Flange
Port Gender Female
Rod Gender Female
Series MGG
Product Type Guided Air Cylinders
