How can I get a price quote for Siemens ZNX:EIP200PRO?

You can request a fast quote for Siemens ZNX:EIP200PRO from Yılsa Engineering. Reference part number CEY-8EF3B03546A8. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens ZNX:EIP200PRO in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens ZNX:EIP200PRO genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens ZNX:EIP200PRO?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

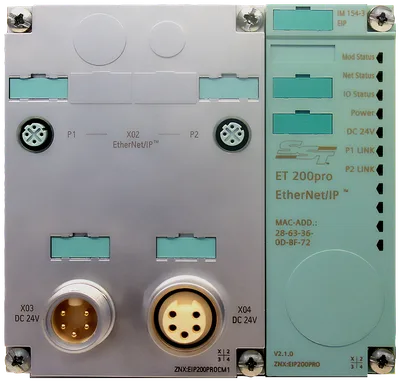

Siemens ZNX:EIP200PRO

SIMATIC DP, Ethernet/IP head assembly for ET 200pro, max. 12 I/O modules incl. motor starter; no fail-safe modules, integrated 2-port switch incl. configuration tool (DVD)

SiemensMFR # ZNX:EIP200PROSKU # CEY-8EF3B03546A8

Product type designationEthernet/IP

Vendor identification (VendorID)0008h

Device identifier (DeviceID)023Ah

Rated value (DC)24 V

from supply voltage 1L+, max.400 mA

Power loss, typ.6 W

Have questions?Chat on WhatsApp

About This Product

SIMATIC DP, Ethernet/IP head assembly for ET 200pro, max. 12 I/O modules incl. motor starter; no fail-safe modules, integrated 2-port switch incl. configuration tool (DVD)

Siemens ZNX:EIP200PRO

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationEthernet/IP

Vendor identification (VendorID)0008h

Device identifier (DeviceID)023Ah

Supply voltage

Rated value (DC)24 V

Input current

from supply voltage 1L+, max.400 mA

Power loss

Power loss, typ.6 W

Address space per module

Inputs255 byte

Outputs255 byte

M12 port

AutonegotiationYes

Transmission rate, max.100 Mbit/s

Protocols

Supports protocol for PROFINET IONo

PROFIsafeNo

PROFIBUSNo

EtherNet/IPYes

Diagnostics indication LED

For load voltage monitoringYes

Bus fault BF (red)Yes

Group error SF (red)Yes

Monitoring 24 V voltage supply ON (green)Yes

Potential separation

between backplane bus and electronicsYes

between supply voltage and electronicsYes

Isolation

Isolation tested with707 V DC (type test)

Ambient temperature during operation

min.-25 °C

max.55 °C

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Dimensions

Width135 mm

Height130 mm

Depth59.3 mm

Weights

Weight, approx.490 g
