How can I get a price quote for Siemens S55375-C104?

You can request a fast quote for Siemens S55375-C104 from Yılsa Engineering. Reference part number YLSTL86HUIOPUUB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens S55375-C104 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens S55375-C104 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens S55375-C104?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

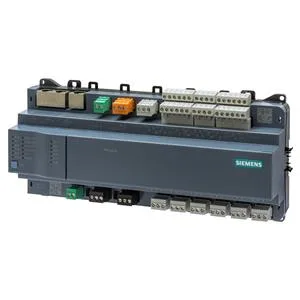

Siemens S55375-C104

PXC5.E24 - Automation Station, 24 Input/Outputs, Modbus, BACnet/IP, BACnet/SC. Freely programmable automation station for HVAC and building service plants. System functions (alarming, scheduling, trending, access protection) Freely programmable (close resemblance to CEN standard 11312). All function blocks, available in libraries, can be graphically connected. Total 24 onboard IO’s: 8 universal input/outputs, 8 super universal input/outputs, 2 Digital Input and 6 relay outputs. Allows for the direct connection of I/O modules TXM. Up to 4 TXM modules (depending on the type) can be powered directly. Maximal number of inputs and outputs (onboard and TXM) is 80 Integration of up to 80 Modbus data points Direct connection of field devices; the automation station provides power supply for inputs and outputs as well as for active sensors. Battery free: Energy reserve (Supercap) to support real-time clock (7 days) Engineering and commissioning with the user-friendly tool ABT Site using graphical function charts Generic object viewer for device local datapoints via an embedded web interface BTL tested BACnet communication (BACnet/IP and BACnet/SC) or BACnet MS/TP, in compliance with the BACnet standard including B-BC profile (Rev. refer to data sheet) BACnet secure communication WLAN interface for engineering and commissioning Compatible I/O smodules: TXM1.8D, TXM1.16D TXM1.8U, TXM1.8U-ML TXM1.8X, TXM1.8X-ML TXM1.6R, TXM1.6R-M TXM1.8P TXM1.8T TXM1.4D3R TXS1.12F10 TXS1.EF10 TXA1.IBE

SiemensMFR # S55375-C104SKU # YLSTL86HUIOPUUB
