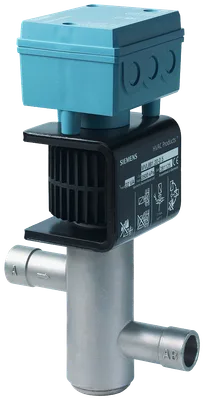

Siemens S55320-M109

MVL661.25-6.3EX - 2-port refrigerant valve, internal solder connection, DN25, kvs 6.3, AC / DC 24 V, DC 0/2...10 V / 0/4...20 mA, ATEX. Hermetically sealed 2-port refrigerant valve for modulating control of chillers and heat pumps with DN25, kvs 6.3 m3/h. Operating voltage AC / DC 24 V Control signal DC 0/2...10 V / 0/4...20 mAV Expansion, hot-gas and suction throttle applications with one type of valve Certification per ATEX Directive 2014/34/EU Test certificate: SEV 17 ATEX 0110 X PS45, stainless steel with soldering connections Integrated power electronic with precise position feedback signal For safety refrigerants such as R22, R134a, R404A, R407C, R410A, R507, and R744 (CO2).

SiemensMFR # S55320-M109SKU # YLSNRT8DSJLQL4J
