How can I get a price quote for Siemens S54476-C300-A1?

You can request a fast quote for Siemens S54476-C300-A1 from Yılsa Engineering. Reference part number YLS1JRQRABHIF3I. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens S54476-C300-A1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens S54476-C300-A1 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens S54476-C300-A1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

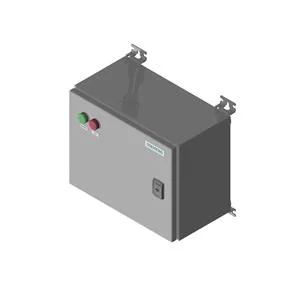

Siemens S54476-C300-A1

SDU-PLC1-DC - Sinorix SDU-PLC1-DC Controller. PLC-controlled shut-off device with pneumatically driven ball valve to stop the propellant gas delivery of automatic Sinorix 1230 extinguishing systems. Shut-off device for the propellant gas delivery to limit the room overpressure in the flooding zone. Safe and volume flow-limited discharge of the residual propellant agent from the extinguishing cylinders via separate piping. Features: - Automatic actuation of a pneumatic driven ball valve after the extinguishant has been discharged to stop the propellant flow. - Switching delay time adjustable on each device - Dry changeover contact for fault signal - Connection of monitored lines of Siemens extinguishing control panels - Panel LED indicators: LED green (operation), red (fault) - Lockable housing - Fluid Sensor included Technical data: - Brand: Siemens - Type: Sinorix SDU-PLC1-DC Controller - Control pressure: 10 bar - Supply voltage: +24 VDC - Power consumption: 6 W (at rest), 20 W (when flooded) - Potential-free changeover contact - Monitored line with resistance circuit

SiemensMFR # S54476-C300-A1SKU # YLS1JRQRABHIF3I
