How can I get a price quote for Siemens S54339-A6-A1?

You can request a fast quote for Siemens S54339-A6-A1 from Yılsa Engineering. Reference part number YLSDKLI4UOI4HPY. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens S54339-A6-A1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens S54339-A6-A1 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens S54339-A6-A1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

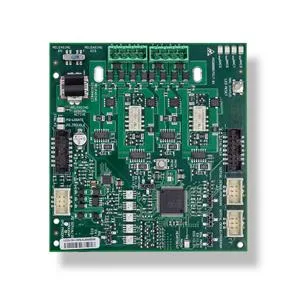

Siemens S54339-A6-A1

PAD-5-CLSA - PAD-5 addressable NAC expander main board. The PAD-5-CLSA Card is used in conjunction with PAD-5 Main Boards, the `Class A/B’ Expansion Module (Model PAD-5-CLSA) provides additional circuits for Siemens signaling appliances. In order for proper additional functionality, two (2) circuits, rated at 3A max., are wired as `Class A’, or four (4) circuits are wired as `Class B’. Model PAD-5-CLSA uses one (1) address on the P2 loop. The address for Model PAD-5-CLSA must always be the next sequential (numerical) address to that of the connected Model PAD-5-MB main board. Additionally, the Model PAD-5-CLSA can be use for Sinorix®, pre-action and deluge sprinkler or clean agent control with one Class A or 2 Class B Releasing circuits. Any unsed NAC can be configured as well as an Aux Power output or a non-alarm contact closure monitoring circuit.

SiemensMFR # S54339-A6-A1SKU # YLSDKLI4UOI4HPY
