How can I get a price quote for Siemens S54320-F14-A1?

You can request a fast quote for Siemens S54320-F14-A1 from Yılsa Engineering. Reference part number YLSAVAMOSHKQIRY. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens S54320-F14-A1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens S54320-F14-A1 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens S54320-F14-A1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

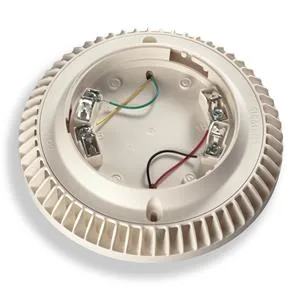

Siemens S54320-F14-A1

ABHW-4S - Audible base, 520 Hz Speaker version & Temp 4/CO. Designed to produce a 520 Hz., square-wave audio signal, the Model ABHW-4S Audible (Sounder) Base from Siemens Industry Inc. is an intelligent, supervised and addressable detector base designed ideally suited for use in sleeping areas of a building. Model ABHW-4S can also be powered in a traditional four-wire configuration, utilizing a notification-appliance circuit (NAC); a Siemens PAD-series NAC extender; Model ZIC-4A, or any UL/ULC Listed, 24 Volts DC power supply. There are six (6) field-configurable audible tone patterns, while two (2) volume levels are used with compatible Siemens intelligent detectors and FACPs. The tone patterns (Steady; Temporal 3 pattern; and Canadian March Time 30) are supported by each intelligent audible (sounder) base for sleeping areas. When used in conjunction with other listed, compatible Siemens fire-safety components, Model ABHW-4S may be used in lieu of single / multiple station smoke alarms to achieve enhanced, system-level functionality. The 520 Hz. Model ABHW-4S Audible (Sounder) Base meets the codes specified in UL268, ULC-S525 / ULC-S529 – as well as UL464 & UL2075, which includes 520 Hz., low-frequency requirements for ‘Sleeping Area'.

SiemensMFR # S54320-F14-A1SKU # YLSAVAMOSHKQIRY
