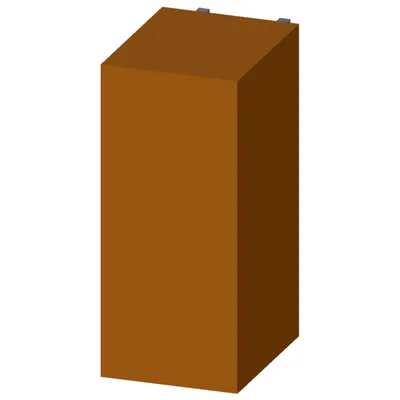

Siemens LZX:RT314024

Plug-in relay 1 W, Width 15 mm, 24 V DC for LZS sockets

SiemensMFR # LZX:RT314024SKU # CEY-8EF3B031165C

product brand nameSIRIUS

product designationPlug-in relay

product type designationLZX

consumed active power400 mW

operating frequency without load72 000 1/h

operating frequency with load360 1/h

Have questions?Chat on WhatsApp

About This Product

Siemens LZX:RT314024 (Plug-in relay 1 W, Width 15 mm, 24 V DC for LZS sockets) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens LZX:RT314024 — price, stock availability and technical specifications.

Siemens LZX:RT314024

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationPlug-in relay

product type designationLZX

General technical data

consumed active power400 mW

percental drop-out voltage related to the input voltage10 %

shock resistance according to IEC 60068-2-275 g / 11 ms

vibration resistance according to IEC 60068-2-630 ... 150 Hz: 4 g

operating frequency without load72 000 1/h

operating frequency with load360 1/h

switching behaviormonostable

mechanical service life (operating cycles) typical30 000 000

electrical endurance (operating cycles) at AC-15 at 230 V typical100 000

thermal current16 A

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)05/01/2012

Net Weight0.017 kg

Control circuit/ Control

control supply voltage at DC rated value24 V

initial value0.9

full-scale value1.4

Switching Function

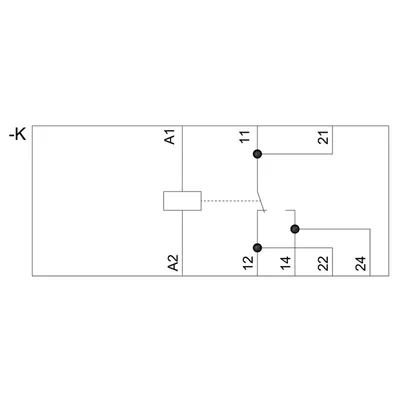

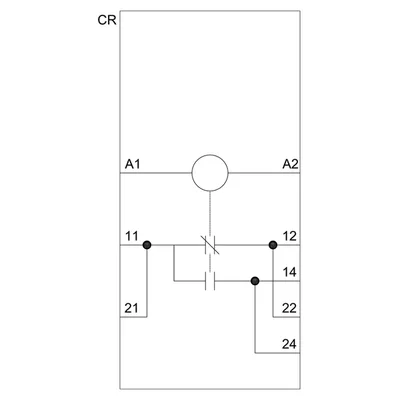

design of the switching functionchangeover switch

Mechanical data

product component plug-in socketNo

design of the relay operating mechanismpoled

Auxiliary circuit

type of switching contactChange-over contact

material of switching contactsAgNi 90/10

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts1

at 250 V6 A

Main circuit

type of voltageDC

ampacity of the output relay at AC-15 at 250 V at 50/60 Hz6 A

Connections/ Terminals

product function removable terminalNo

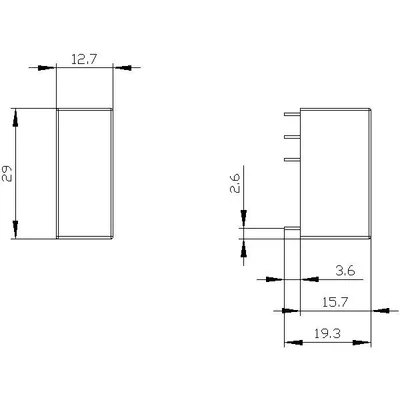

Installation/ mounting/ dimensions

mounting positionany

fastening methodbase mounting

height29 mm

width12.7 mm

depth19.5 mm

Ambient conditions

during operation-40 ... +85 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C
