How can I get a price quote for Siemens LZX:PT520730?

You can request a fast quote for Siemens LZX:PT520730 from Yılsa Engineering. Reference part number CEY-8EF3B0355BA5. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens LZX:PT520730 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens LZX:PT520730 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens LZX:PT520730?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

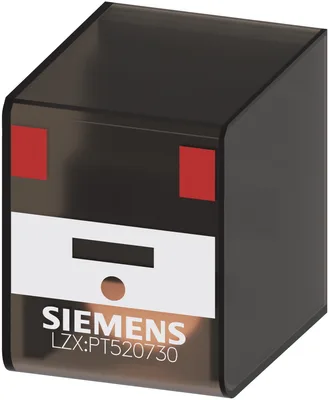

Siemens LZX:PT520730

Plug-in relay 4 changeover contacts, without test bracket 230 V AC, for LZS sockets

SiemensMFR # LZX:PT520730SKU # CEY-8EF3B0355BA5

product brand nameSIRIUS

product designationPlug-in relay

product type designationLZX

operating frequency without load36 000 1/h

operating frequency with load360 1/h

switching behaviormonostable

Have questions?Chat on WhatsApp

About This Product

Plug-in relay 4 changeover contacts, without test bracket 230 V AC, for LZS sockets

Siemens LZX:PT520730

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationPlug-in relay

product type designationLZX

General technical data

percental drop-out voltage related to the input voltage30 %

shock resistance according to IEC 60068-2-275 g / 11 ms

vibration resistance according to IEC 60068-2-630 ... 150 Hz: 4 g

operating frequency without load36 000 1/h

operating frequency with load360 1/h

switching behaviormonostable

mechanical service life (operating cycles) typical20 000 000

electrical endurance (operating cycles) at AC-15 at 230 V typical250 000

thermal current6 A

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)05/01/2012

Net Weight30 g

Control circuit/ Control

at 50 Hz rated value230 V

at 60 Hz rated value230 V

1 rated value50 Hz

2 rated value60 Hz

supply voltage frequency for auxiliary and control circuit rated value50 ... 60 Hz

initial value0.9

full-scale value1.1

initial value0.9

full-scale value1.1

Switching Function

design of the switching functionchangeover switch

Mechanical data

product component plug-in socketNo

design of the relay operating mechanismpoled

Auxiliary circuit

type of switching contactChange-over contact

material of switching contactsAgNi 90/10

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts4

at 250 V2 A

operational current at DC-13 at 24 V rated value4 A

at 24 V4 A

Main circuit

type of voltageAC

ampacity of the output relay at AC-15 at 250 V at 50/60 Hz2 A

at 24 V4 A

Connections/ Terminals

product function removable terminalNo

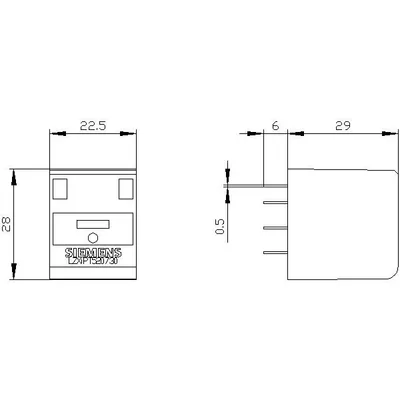

Installation/ mounting/ dimensions

mounting positionany

fastening methodbase mounting

height28 mm

width22.5 mm

depth35 mm

Ambient conditions

during operation-40 ... +70 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C
