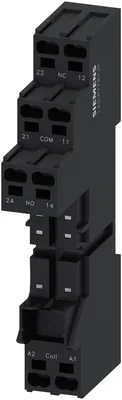

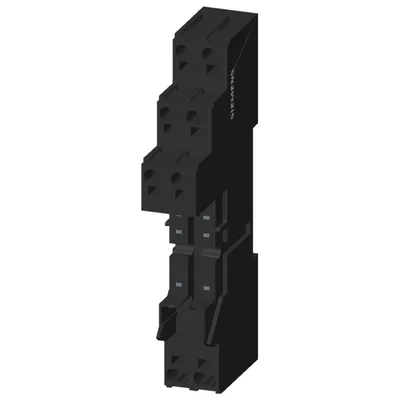

Siemens LZS:RT7872P

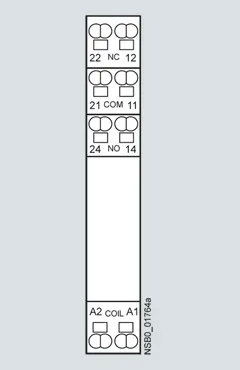

plug-in socket for RT relay base with logical isolation, base with logical isolation, spring-loaded terminal (push-in)

SiemensMFR # LZS:RT7872PSKU # CEY-8EF3B0355BB8

product brand nameSIRIUS

product type designationLZS

display version LEDNo

reference code according to IEC 81346-2U

Substance Prohibitance (day/month/year)05/01/2012

Net Weight0.039 kg

Have questions?Chat on WhatsApp

About This Product

plug-in socket for RT relay base with logical isolation, base with logical isolation, spring-loaded terminal (push-in)

Siemens LZS:RT7872P

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product type designationLZS

General technical data

display version LEDNo

reference code according to IEC 81346-2U

Substance Prohibitance (day/month/year)05/01/2012

Net Weight0.039 kg

Mechanical data

product component plug-in socketYes

design of the snap-on socket baseSocket with logic isolation

design of the relay operating mechanismpoled

Auxiliary circuit

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts0

Connections/ Terminals

product function removable terminalNo

type of electrical connectionspring-loaded terminal (push-in)

solid1x (0,75 ... 1,5), 2x (0,75 ... 1,0), 2x 1,5

finely stranded with core end processing1x (0,75 ... 1,5), 2x 0,75

finely stranded without core end processing1x (0,75 ... 1,5), 2x (0,75 ... 1,0), 2x 1,5

for AWG cables solid1x (18 ... 16), 2x (18 ... 16)

for AWG cables stranded1x (18 ... 16), 2x (18 ... 16)

solid0.75 ... 1.5 mm²

finely stranded with core end processing0.75 ... 1.5 mm²

finely stranded without core end processing0.75 ... 1.5 mm²

solid18 ... 16

stranded18 ... 16

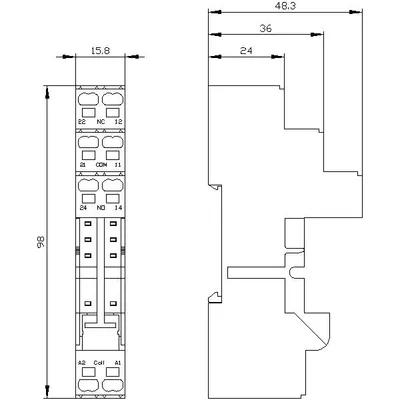

Installation/ mounting/ dimensions

mounting positionany

fastening methodsnap-on mounting

height98 mm

width15.5 mm

depth48.3 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

Ambient conditions

during operation-40 ... +70 °C

during storage-20 ... +70 °C

during transport-20 ... +70 °C
