How can I get a price quote for Siemens LZS:RT78726?

You can request a fast quote for Siemens LZS:RT78726 from Yılsa Engineering. Reference part number CEY-937FC77EED2F. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens LZS:RT78726 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens LZS:RT78726 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens LZS:RT78726?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

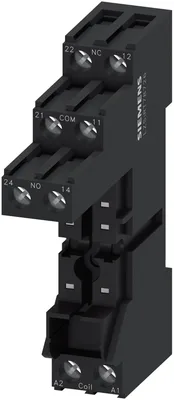

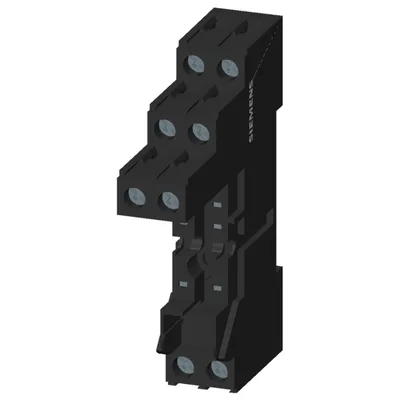

Siemens LZS:RT78726

plug-in socket for RT relay base with logical isolation, screw terminal

SiemensMFR # LZS:RT78726SKU # CEY-937FC77EED2F

product brand nameSIRIUS

product type designationLZS

display version LEDNo

reference code according to IEC 81346-2U

Substance Prohibitance (day/month/year)05/01/2012

Net Weight43 g

Have questions?Chat on WhatsApp

About This Product

plug-in socket for RT relay base with logical isolation, screw terminal

Siemens LZS:RT78726

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product type designationLZS

General technical data

display version LEDNo

reference code according to IEC 81346-2U

Substance Prohibitance (day/month/year)05/01/2012

Net Weight43 g

Mechanical data

product component plug-in socketYes

design of the snap-on socket baseSocket with logic isolation

design of the relay operating mechanismpoled

Auxiliary circuit

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts0

Connections/ Terminals

product function removable terminalNo

type of electrical connectionscrew terminal

solid1x (1,0 ... 2,5), 2x 1,0, 2x 1,5, 2x 2,5

finely stranded with core end processing1x (1.0 ... 1.5), 2x 1.0, 2x 1.5

for AWG cables solid1x (18 ... 14), 2x 18, 2x 16, 2x 14

solid1 ... 2.5 mm²

finely stranded with core end processing1 ... 1.5 mm²

solid18 ... 14

tightening torque with screw-type terminals0.5 ... 0.7 N·m

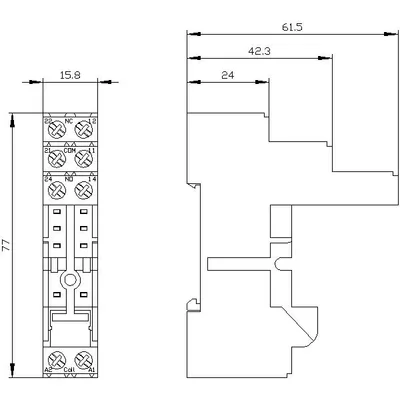

Installation/ mounting/ dimensions

mounting positionany

fastening methodsnap-on mounting

height77 mm

width15.5 mm

depth61.5 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

Ambient conditions

during operation-40 ... +70 °C

during storage-20 ... +70 °C

during transport-20 ... +70 °C
