How can I get a price quote for Siemens LZS:RT4B4L24?

You can request a fast quote for Siemens LZS:RT4B4L24 from Yılsa Engineering. Reference part number CEY-937FC77EADCA. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens LZS:RT4B4L24 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens LZS:RT4B4L24 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens LZS:RT4B4L24?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

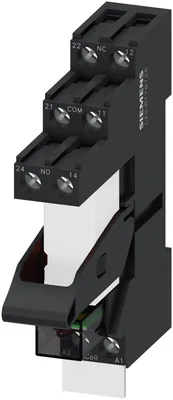

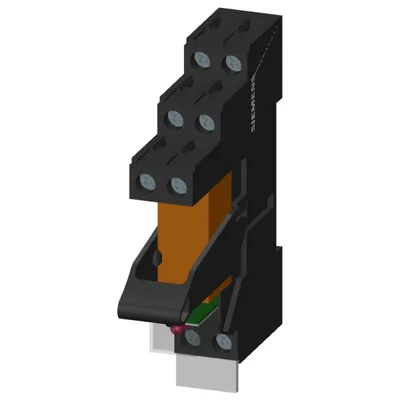

Siemens LZS:RT4B4L24

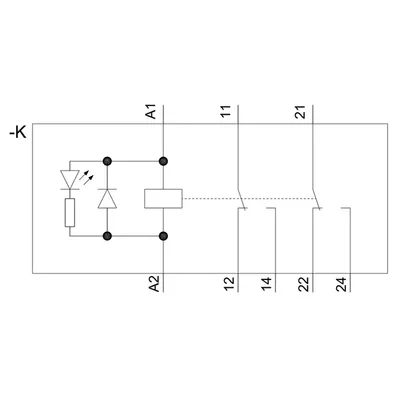

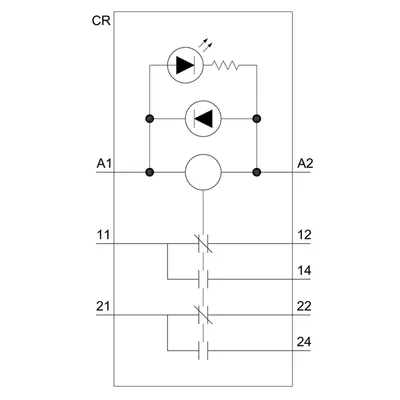

plug-in relay complete unit, 2 changeover contacts, 24 V DC, LED module red, base with logical isolation, screw terminal, 3.5 mm pinning

SiemensMFR # LZS:RT4B4L24SKU # CEY-937FC77EADCA

product brand nameSIRIUS

product designationCoupling relay with plug-in relay

product type designationLZS

display version LEDYes

consumed active power0.4 W

operating frequency without load36 000 1/h

Have questions?Chat on WhatsApp

About This Product

plug-in relay complete unit, 2 changeover contacts, 24 V DC, LED module red, base with logical isolation, screw terminal, 3.5 mm pinning

Siemens LZS:RT4B4L24

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationCoupling relay with plug-in relay

product type designationLZS

General technical data

display version LEDYes

consumed active power0.4 W

percental drop-out voltage related to the input voltage10 %

operating frequency without load36 000 1/h

operating frequency with load360 1/h

switching behaviormonostable

mechanical service life (operating cycles) typical30 000 000

electrical endurance (operating cycles) at AC-15 at 230 V typical100 000

thermal current8 A

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)05/01/2012

Net Weight0.057 kg

Control circuit/ Control

control supply voltage at DC rated value24 V

initial value0.9

full-scale value1.4

at DC maximum8 ms

at DC maximum6 ms

Switching Function

design of the switching functionchangeover switch

Mechanical data

product component plug-in socketYes

design of the snap-on socket baseSocket with logic isolation

design of the relay operating mechanismpoled

Short-circuit protection

design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gG: 10 A

Auxiliary circuit

type of switching contactChange-over contact

material of switching contactsAgNi 90/10

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts2

at 24 V2 A

Main circuit

type of voltageDC

Display

display version as status display by LEDLED red

Connections/ Terminals

product function removable terminalNo

type of electrical connectionscrew terminal

solid1x (1,0 ... 2,5), 2x 1,0, 2x 1,5, 2x 2,5

finely stranded with core end processing1x (1.0 ... 1.5), 2x 1.0, 2x 1.5

for AWG cables solid1x (18 ... 14), 2x 18, 2x 16, 2x 14

solid1 ... 2.5 mm²

finely stranded with core end processing1 ... 1.5 mm²

solid18 ... 14

tightening torque with screw-type terminals0.5 ... 0.7 N·m

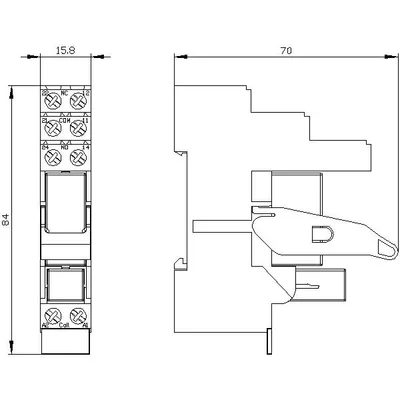

Installation/ mounting/ dimensions

mounting positionany

fastening methodsnap-on mounting

height77 mm

width15.5 mm

depth71 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

Ambient conditions

during operation-40 ... +70 °C

during storage-20 ... +70 °C

during transport-20 ... +70 °C
