How can I get a price quote for Siemens LZS:RT3D4L24?

You can request a fast quote for Siemens LZS:RT3D4L24 from Yılsa Engineering. Reference part number CEY-8EF3B0355BCB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens LZS:RT3D4L24 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens LZS:RT3D4L24 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens LZS:RT3D4L24?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

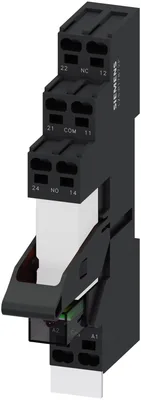

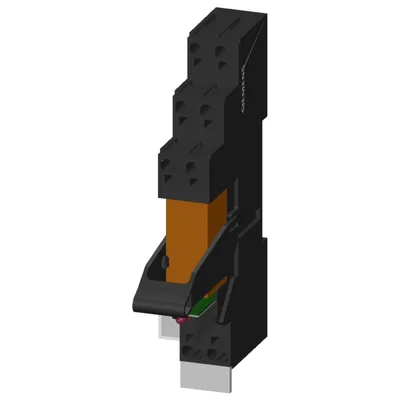

Siemens LZS:RT3D4L24

plug-in relay complete unit, 1 changeover contact, 24 V DC, LED module red, base with logical isolation, spring-loaded terminal (push-in)

SiemensMFR # LZS:RT3D4L24SKU # CEY-8EF3B0355BCB

product brand nameSIRIUS

product designationCoupling relay with plug-in relay

product type designationLZS

display version LEDYes

consumed active power0.4 W

operating frequency without load36 000 1/h

Have questions?Chat on WhatsApp

About This Product

plug-in relay complete unit, 1 changeover contact, 24 V DC, LED module red, base with logical isolation, spring-loaded terminal (push-in)

Siemens LZS:RT3D4L24

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationCoupling relay with plug-in relay

product type designationLZS

General technical data

display version LEDYes

consumed active power0.4 W

percental drop-out voltage related to the input voltage10 %

operating frequency without load36 000 1/h

operating frequency with load360 1/h

switching behaviormonostable

mechanical service life (operating cycles) typical30 000 000

electrical endurance (operating cycles) at AC-15 at 230 V typical100 000

thermal current16 A

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)05/01/2012

Net Weight0.056 kg

Control circuit/ Control

control supply voltage at DC rated value24 V

initial value0.9

full-scale value1.4

at DC maximum8 ms

at DC maximum6 ms

Switching Function

design of the switching functionchangeover switch

Mechanical data

product component plug-in socketYes

design of the snap-on socket baseSocket with logic isolation

design of the relay operating mechanismpoled

Short-circuit protection

design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gG: 10 A

Auxiliary circuit

type of switching contactChange-over contact

material of switching contactsAgNi 90/10

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts1

Main circuit

type of voltageDC

Display

display version as status display by LEDLED red

Connections/ Terminals

product function removable terminalNo

type of electrical connectionspring-loaded terminal (push-in)

solid1x (0,75 ... 1,5), 2x (0,75 ... 1,0), 2x 1,5

finely stranded with core end processing1x (0,75 ... 1,5), 2x 0,75

finely stranded without core end processing1x (0,75 ... 1,5), 2x (0,75 ... 1,0), 2x 1,5

for AWG cables solid1x (18 ... 16), 2x (18 ... 16)

for AWG cables stranded1x (18 ... 16), 2x (18 ... 16)

solid0.75 ... 1.5 mm²

finely stranded with core end processing0.75 ... 1.5 mm²

finely stranded without core end processing0.75 ... 1.5 mm²

solid18 ... 16

stranded18 ... 16

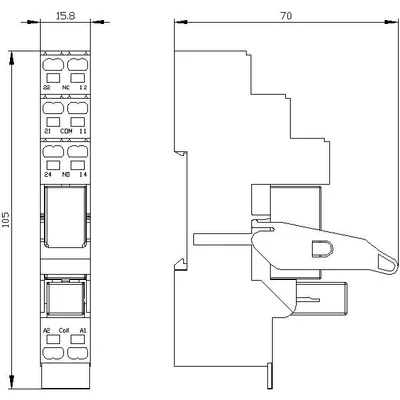

Installation/ mounting/ dimensions

mounting positionany

fastening methodsnap-on mounting

height98 mm

width15.5 mm

depth71 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— at the side0 mm

— downwards0 mm

— forwards0 mm

— backwards0 mm

— upwards0 mm

— downwards0 mm

— at the side0 mm

Ambient conditions

during operation-40 ... +70 °C

during storage-20 ... +70 °C

during transport-20 ... +70 °C
