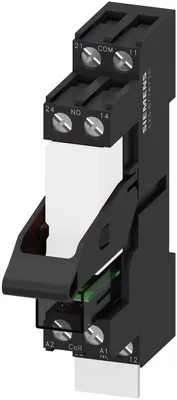

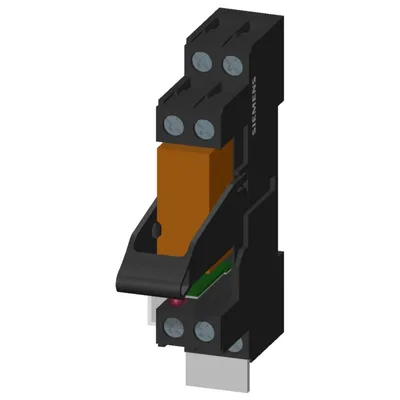

Siemens LZS:RT3A4L24

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens LZS:RT3A4L24

plug-in relay complete unit, 1 changeover contact, 24 V DC, LED module red, standard plug-in socket screw terminal, 3.5 mm pinning

SiemensMFR # LZS:RT3A4L24SKU # CEY-8EF3B032BA37
product brand nameSIRIUS
product designationCoupling relay with plug-in relay
product type designationLZS
display version LEDYes
consumed active power0.4 W
operating frequency without load36 000 1/h
Share
Have questions?Chat on WhatsApp

About This Product

plug-in relay complete unit, 1 changeover contact, 24 V DC, LED module red, standard plug-in socket screw terminal, 3.5 mm pinning

Siemens LZS:RT3A4L24

  • Genuine, certified Siemens product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS
product designationCoupling relay with plug-in relay
product type designationLZS
General technical data
display version LEDYes
consumed active power0.4 W
percental drop-out voltage related to the input voltage10 %
operating frequency without load36 000 1/h
operating frequency with load360 1/h
switching behaviormonostable
mechanical service life (operating cycles) typical30 000 000
electrical endurance (operating cycles) at AC-15 at 230 V typical100 000
thermal current16 A
reference code according to IEC 81346-2K
Substance Prohibitance (day/month/year)05/01/2012
Net Weight0.052 kg
Control circuit/ Control
control supply voltage at DC rated value24 V
at DC maximum8 ms
at DC maximum6 ms
Switching Function
design of the switching functionchangeover switch
Mechanical data
product component plug-in socketYes
design of the snap-on socket baseStandard socket
design of the relay operating mechanismpoled
Short-circuit protection
design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gG: 10 A
Auxiliary circuit
type of switching contactChange-over contact
material of switching contactsAgNi 90/10
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts1
Main circuit
type of voltageDC
Display
display version as status display by LEDLED red
Connections/ Terminals
product function removable terminalNo
type of electrical connectionscrew terminal
solid1x (1,0 ... 2,5), 2x 1,0, 2x 1,5, 2x 2,5
finely stranded with core end processing1x (1.0 ... 1.5), 2x 1.0, 2x 1.5
for AWG cables solid1x (18 ... 14), 2x 18, 2x 16, 2x 14
solid1 ... 2.5 mm²
finely stranded with core end processing1 ... 1.5 mm²
solid18 ... 14
tightening torque with screw-type terminals0.5 ... 0.7 N·m

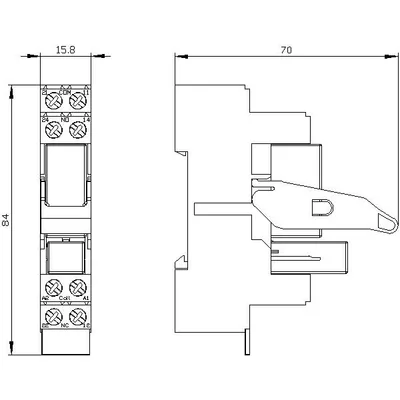

Installation/ mounting/ dimensions
mounting positionany
fastening methodsnap-on mounting
height78 mm
width15.5 mm
depth71 mm
Ambient conditions
during operation-40 ... +70 °C
during storage-20 ... +70 °C
during transport-20 ... +70 °C
