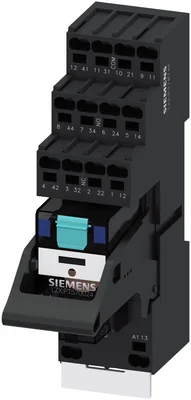

Siemens LZS:PT5D5L24A

plug-in relay complete unit, 4 changeover contacts, 24 V DC, LED module green, base with logical isolation, spring-loaded terminal (push-in)

SiemensMFR # LZS:PT5D5L24ASKU # YLSMR3HE6XWYILF

product brand nameSIRIUS

product designationCoupling relay with plug-in relay

product type designationLZS

display version LEDYes

consumed active power1 W

operating frequency without load36 000 1/h

Have questions?Chat on WhatsApp

About This Product

plug-in relay complete unit, 4 changeover contacts, 24 V DC, LED module green, base with logical isolation, spring-loaded terminal (push-in)

Siemens LZS:PT5D5L24A

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationCoupling relay with plug-in relay

product type designationLZS

General technical data

display version LEDYes

consumed active power1 W

percental drop-out voltage related to the input voltage10 %

operating frequency without load36 000 1/h

operating frequency with load360 1/h

switching behaviormonostable

mechanical service life (operating cycles) typical30 000 000

electrical endurance (operating cycles) at AC-15 at 230 V typical250 000

thermal current6 A

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)05/01/2012

Net Weight0.107 kg

Control circuit/ Control

control supply voltage at DC rated value24 V

initial value0.9

full-scale value1.4

at DC maximum15 ms

at DC maximum18 ms

Switching Function

design of the switching functionchangeover switch

Mechanical data

product component plug-in socketYes

design of the snap-on socket baseSocket with logic isolation

design of the relay operating mechanismpoled

Short-circuit protection

design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gG: 6 A

Auxiliary circuit

type of switching contactChange-over contact

material of switching contactsAgNi 90/10

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts4

at 250 V4 A

operational current at DC-13 at 24 V rated value4 A

at 24 V4 A

Main circuit

type of voltageDC

at 24 V4 A

Display

display version as status display by LEDLED green

Connections/ Terminals

product function removable terminalNo

type of electrical connectionspring-loaded terminal (push-in)

solid1x (0,75 ... 1,5), 2x (0,75 ... 1,0), 2x 1,5

finely stranded with core end processing1x (0,75 ... 1,5), 2x 0,75

finely stranded without core end processing1x (0,75 ... 1,5), 2x (0,75 ... 1,0), 2x 1,5

for AWG cables solid1x (18 ... 16), 2x (18 ... 16)

for AWG cables stranded1x (18 ... 16), 2x (18 ... 16)

solid0.75 ... 1.5 mm²

finely stranded with core end processing0.75 ... 1.5 mm²

finely stranded without core end processing0.75 ... 1.5 mm²

solid18 ... 16

stranded18 ... 16

Installation/ mounting/ dimensions

mounting positionany

fastening methodsnap-on mounting

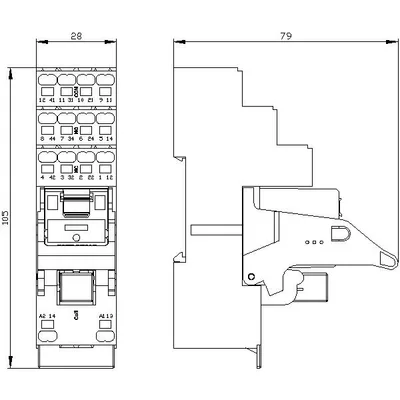

height98 mm

width28 mm

depth79 mm

Ambient conditions

during operation-40 ... +70 °C

during storage-25 ... +70 °C

during transport-25 ... +70 °C
