View Details
Siemens
1EE1122-..A00-...4
MFR #1EE1122-..A00-...4
SKU #YLS3FGFZLYE3EV8
Photo may not represent actual item. Refer to name and product specs for all details.

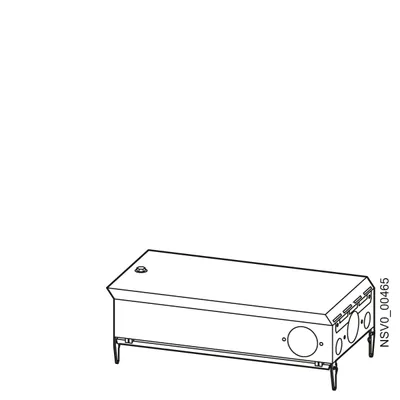

Siemens BVP:262498
BD2-AK03X/F2258-3N TAP-OFF UNIT 100A / 1X 4POLE FU SE SOCKET SP58
at 50 Hz rated value maximum400 V
at 60 Hz rated value maximum400 V
protection class IPIP54, mit Zusatzausruestung: IP55
minimum50 Hz
maximum60 Hz
minimum0.75 mm²
About This Product
BD2-AK03X/F2258-3N TAP-OFF UNIT 100A / 1X 4POLE FU SE SOCKET SP58
Siemens BVP:262498
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Model
product designationtap-off unit for BD2 busbar trunking system
at 50 Hz rated value maximum400 V
at 60 Hz rated value maximum400 V
Protection class
protection class IPIP54, mit Zusatzausruestung: IP55
Main circuit
minimum50 Hz
maximum60 Hz
for circuit 1 at AC at 50 Hz rated value maximum100 A
for circuit 1 at AC at 60 Hz rated value maximum100 A
Connections
minimum0.75 mm²
Tap-off points
outgoing unit versioncable entry
design of short-circuit and overloading protection in the outgoing unit3-pole and N fuse base for three 22x58 mm cylinder fuses
size of the outgoing unit03
number of poles of the outgoing unit5
Mechanical Design
height160 mm
width214 mm
length431 mm
number of modular width units9
product component locking mechanismYes
Net Weight7.5 kg
