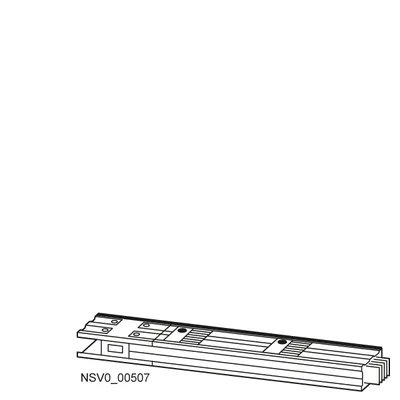

Siemens BVP:261483

BD2A-3-250-SB-3 STANDARD LENGTH 3,25M 250A, N + PE, 12 TAP OFFS

SiemensMFR # BVP:261483SKU # CEY-8EF3B03134A9

product type designationBD2A-3-250-SB-3

configuration of the busbarsL1,L2,L3,N

at AC rated value690 V

at DC rated value800 V

at 50 Hz rated value maximum690 V

at 60 Hz rated value maximum690 V

Have questions?Chat on WhatsApp

About This Product

BD2A-3-250-SB-3 STANDARD LENGTH 3,25M 250A, N + PE, 12 TAP OFFS

Siemens BVP:261483

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product designationtrunking unit for BD2 busbar trunking system

product type designationBD2A-3-250-SB-3

General technical data

configuration of the busbarsL1,L2,L3,N

Voltage

at AC rated value690 V

at DC rated value800 V

at 50 Hz rated value maximum690 V

at 60 Hz rated value maximum690 V

Protection class

protection class IPIP55

Main circuit

minimum50 Hz

maximum60 Hz

for circuit 1 at AC at 50 Hz rated value maximum250 A

for circuit 1 at AC at 60 Hz rated value maximum250 A

Appearance

colorlight grey

Product details

product component fire shieldingNo

Number

number of conductors5

number of conductors without PE4

Connections

conductor cross section of the (PE)N108 mm²

Tap-off points

arrangement of tap-off pointson both sides

distance between tap-off points0.5 m

number of tap-off points maximum12

Mechanical Design

height68 mm

width167 mm

length325 mm

length of the busbar trunking unit3.25 m

fastening methodceiling / wall

mounting position of the busbar trunking unithorizontal edgewise, horizontal flat, vertical

Net Weight20 kg

material of the busbaraluminium
