How can I get a price quote for Siemens BVP:233560?

You can request a fast quote for Siemens BVP:233560 from Yılsa Engineering. Reference part number CEY-8EF3B037AADD. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens BVP:233560 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens BVP:233560 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens BVP:233560?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

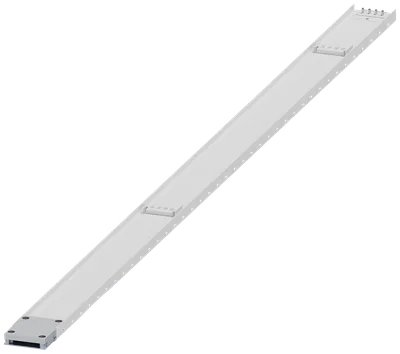

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens BVP:233560

BD01-125-2-1 TRUNKING UNIT 125A

SiemensMFR # BVP:233560SKU # CEY-8EF3B037AADD

product type designationBD01-125-2-1

configuration of the busbarsL1,L2,L3,N

at AC rated value400 V

at DC rated value400 V

at 50 Hz rated value maximum400 V

at 60 Hz rated value maximum400 V

Have questions?Chat on WhatsApp

About This Product

Siemens BVP:233560 (BD01-125-2-1 TRUNKING UNIT 125A) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens BVP:233560 — price, stock availability and technical specifications.

Siemens BVP:233560

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product designationtrunking unit for BD01 busbar trunking system

product type designationBD01-125-2-1

General technical data

configuration of the busbarsL1,L2,L3,N

Voltage

at AC rated value400 V

at DC rated value400 V

at 50 Hz rated value maximum400 V

at 60 Hz rated value maximum400 V

Protection class

protection class IPIP54, mit Zusatzausruestung: IP55 (bei Abgangsstelle nach oben: IP50 / IP55)

Main circuit

minimum50 Hz

maximum60 Hz

for circuit 1 at AC at 50 Hz rated value maximum125 A

for circuit 1 at AC at 60 Hz rated value maximum125 A

Appearance

colorlight grey

Number

number of conductors5

number of conductors without PE4

Connections

conductor cross section of the (PE)N34.1 mm²

Tap-off points

arrangement of tap-off pointssingle-sided

distance between tap-off points1 m

number of tap-off points maximum2

Mechanical Design

height90 mm

width25 mm

length2 000 mm

length of the busbar trunking unit2 m

fastening methodceiling / wall

mounting position of the busbar trunking unithorizontal

Net Weight3.6 kg

material of the busbaraluminium
