View Details
Siemens
1EE1122-..A00-...4
MFR #1EE1122-..A00-...4
SKU #YLS3FGFZLYE3EV8
Photo may not represent actual item. Refer to name and product specs for all details.

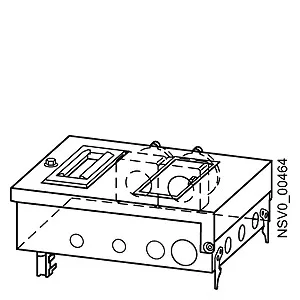

Siemens BVP:203151
BD2-AK2M2/2CEE165A163 TAP-OFF UNIT 16A / 2X3P MCB(C)+ 2X5P.CEE
at 50 Hz rated value maximum400 V
at 60 Hz rated value maximum400 V
protection class IPIP54
minimum50 Hz
maximum60 Hz
outgoing unit versionsocket
About This Product
BD2-AK2M2/2CEE165A163 TAP-OFF UNIT 16A / 2X3P MCB(C)+ 2X5P.CEE
Siemens BVP:203151
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Model
product designationtap-off unit for BD2 busbar trunking system
at 50 Hz rated value maximum400 V
at 60 Hz rated value maximum400 V
Protection class
protection class IPIP54
Main circuit
minimum50 Hz
maximum60 Hz
for circuit 1 at AC at 50 Hz rated value maximum16 A
for circuit 1 at AC at 60 Hz rated value maximum16 A
Tap-off points
outgoing unit versionsocket
design of short-circuit and overloading protection in the outgoing unittwo 3-pole 16 A miniature circuit-breakers
size of the outgoing unit2
number of poles of the outgoing unit5
Mechanical Design
height160 mm
width295 mm
length320 mm
number of modular width units9
product component locking mechanismYes
Net Weight5.4 kg
