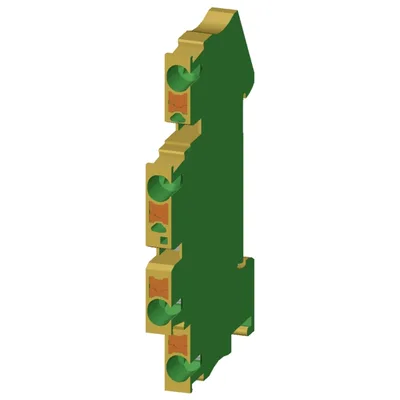

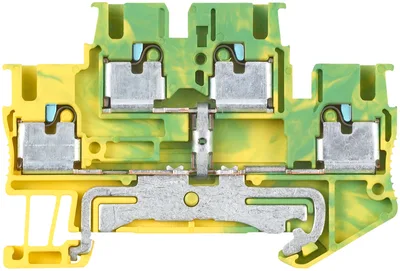

Siemens 8WH6020-0CF07
Terminal, iPo plug-in terminal, two-tier, PE/PEN terminal, 2.5 mm², green-yellow
product brand nameSENTRON
product designationTerminal blocks
design of the productPE through-type terminal
insulation materialthermoplastic
terminal contact spacing5.2 mm
combustibility class according to UL 94V0
About This Product
Terminal, iPo plug-in terminal, two-tier, PE/PEN terminal, 2.5 mm², green-yellow
Siemens 8WH6020-0CF07
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Model
product brand nameSENTRON
product designationTerminal blocks
design of the productPE through-type terminal
General technical data
insulation materialthermoplastic
terminal contact spacing5.2 mm
Protection class
combustibility class according to UL 94V0
Appearance
colorgreen-yellow
Product details
product feature PEN functionNo
product component required end cover plateYes
Number
number of terminal levels2
number of terminal points per terminal level4
Connections
stripped length6 mm
minimum0.14 mm²
maximum4 mm²
minimum4 mm²
maximum0.14 mm²
with core end processing minimum0.14 mm²
with core end processing maximum2.5 mm²
without core end processing minimum0.14 mm²
without core end processing maximum4 mm²
type of connection 1plug terminal connection
type of connection 2plug terminal connection
position of the terminaltop

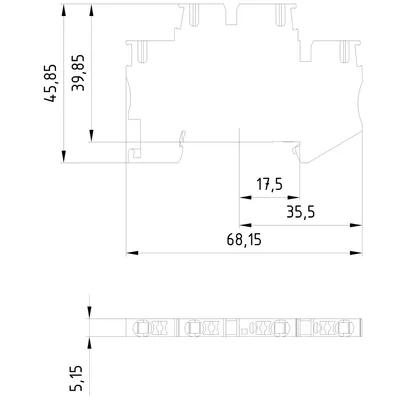

Mechanical Design
height68.18 mm
height with lowest-profile installation36.5 mm
depth45.85 mm
length68 mm
fastening methodTH35 DIN rail
Net Weight13 g
material of the insulating bodyOther
Environmental conditions
minimum105 °C
maximum105 °C
