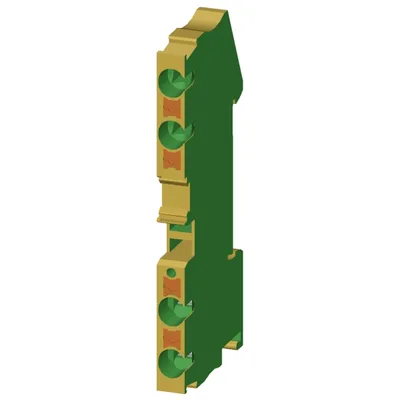

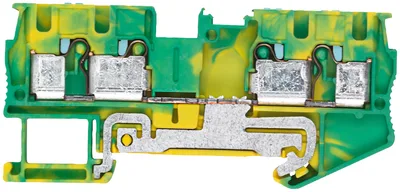

Siemens 8WH6004-0CG07

Terminal, iPo plug-in terminal, PE/PEN terminal, 4 mm², green-yellow

SiemensMFR # 8WH6004-0CG07SKU # CEY-8EF3B037CF01

product brand nameSENTRON

product designationTerminal blocks

design of the productPE through-type terminal

insulation materialthermoplastic

terminal contact spacing6.2 mm

combustibility class according to UL 94V0

Have questions?Chat on WhatsApp

About This Product

Terminal, iPo plug-in terminal, PE/PEN terminal, 4 mm², green-yellow

Siemens 8WH6004-0CG07

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationTerminal blocks

design of the productPE through-type terminal

General technical data

insulation materialthermoplastic

terminal contact spacing6.2 mm

Protection class

combustibility class according to UL 94V0

Appearance

colorgreen-yellow

Product details

product feature PEN functionNo

product component required end cover plateYes

Number

number of terminal levels1

number of terminal points per terminal level4

Connections

stripped length6 mm

minimum0.2 mm²

maximum6 mm²

minimum6 mm²

maximum0.2 mm²

with core end processing minimum0.25 mm²

with core end processing maximum4 mm²

without core end processing minimum0.2 mm²

without core end processing maximum6 mm²

type of connection 1plug terminal connection

type of connection 2plug terminal connection

position of the terminaltop

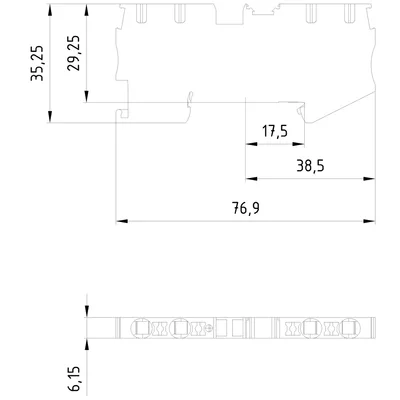

Mechanical Design

height76.93 mm

height with lowest-profile installation36.5 mm

depth35.25 mm

length77 mm

fastening methodTH35 DIN rail

Net Weight17 g

material of the insulating bodyOther

Environmental conditions

minimum105 °C

maximum105 °C
